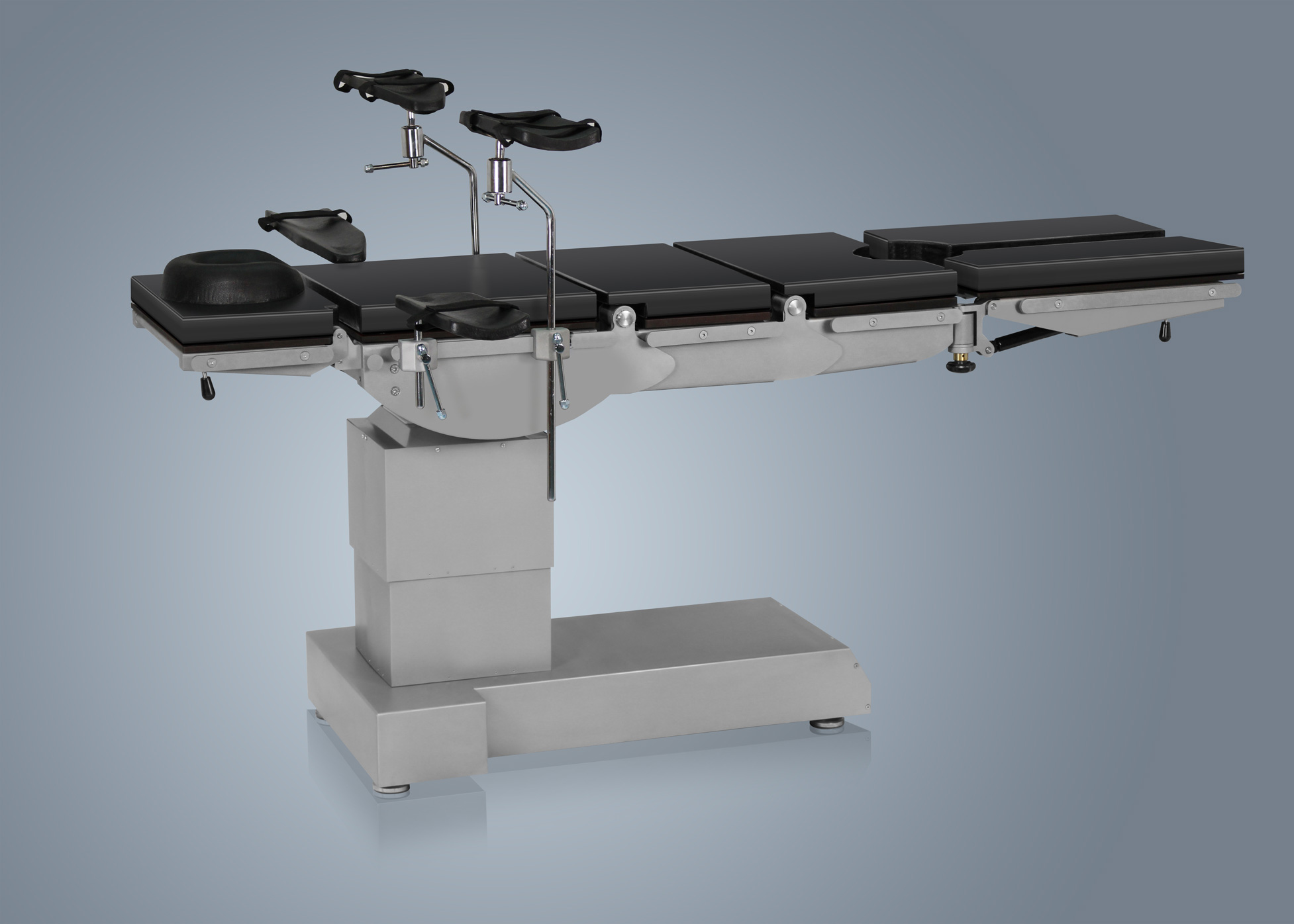

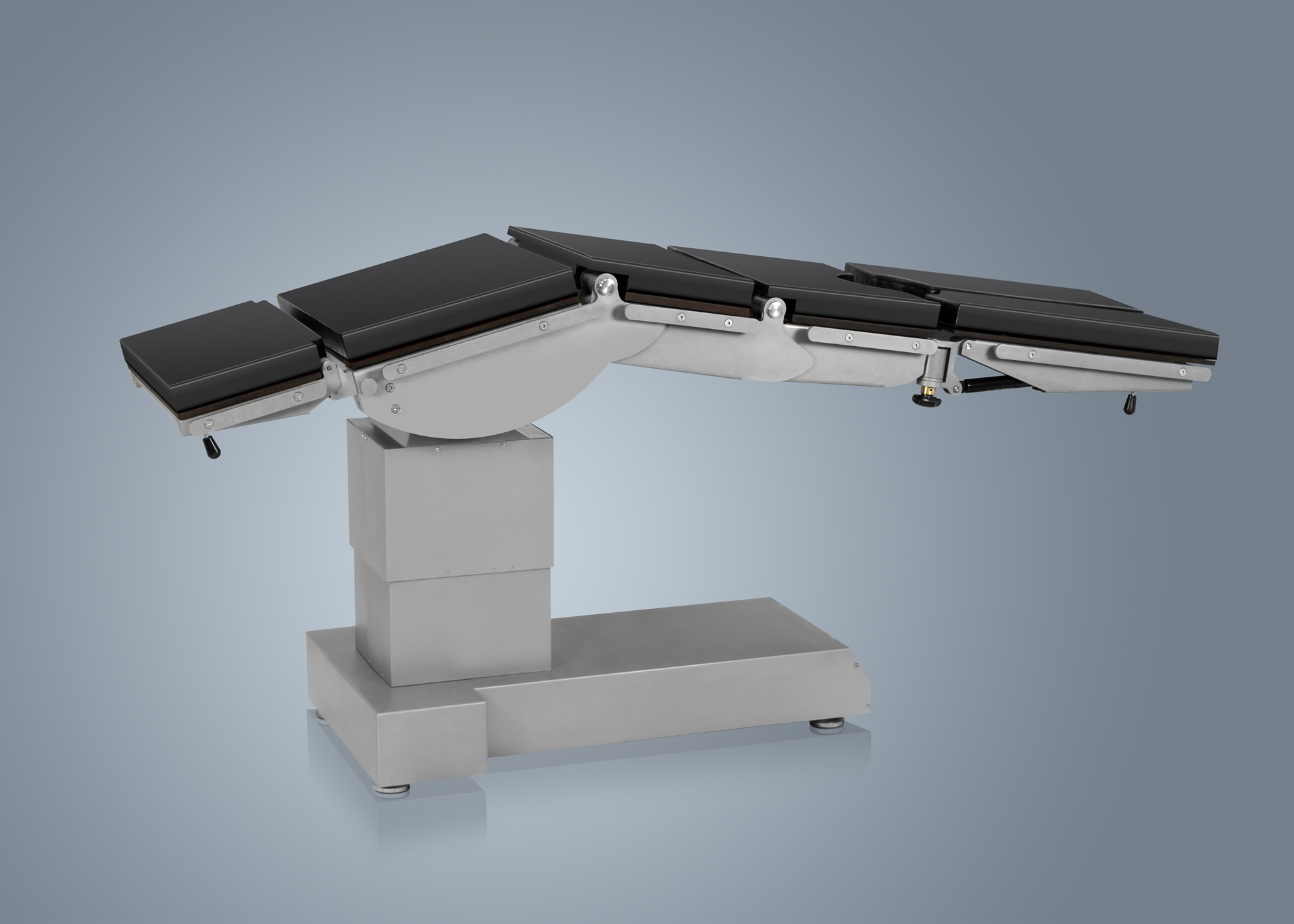

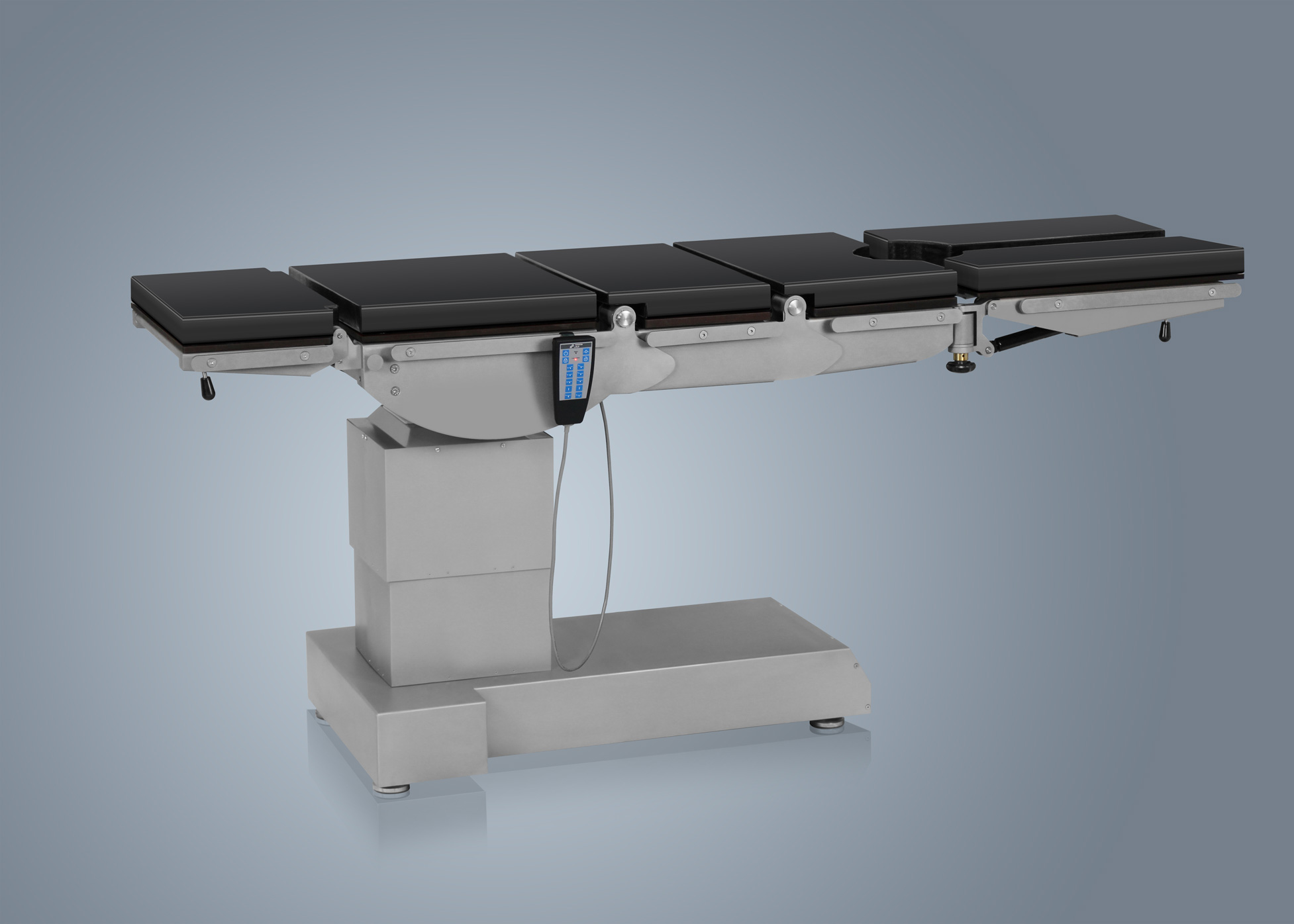

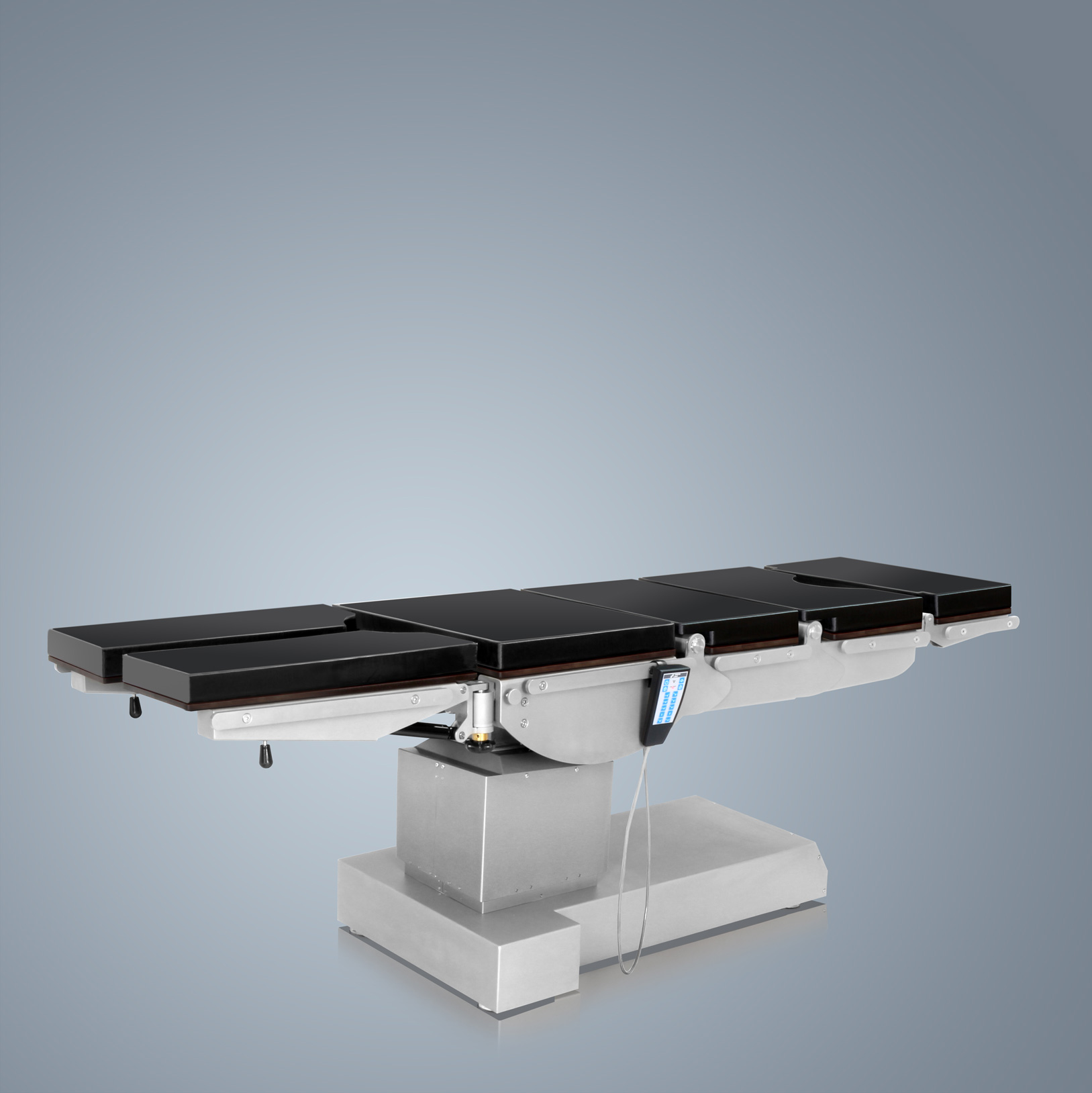

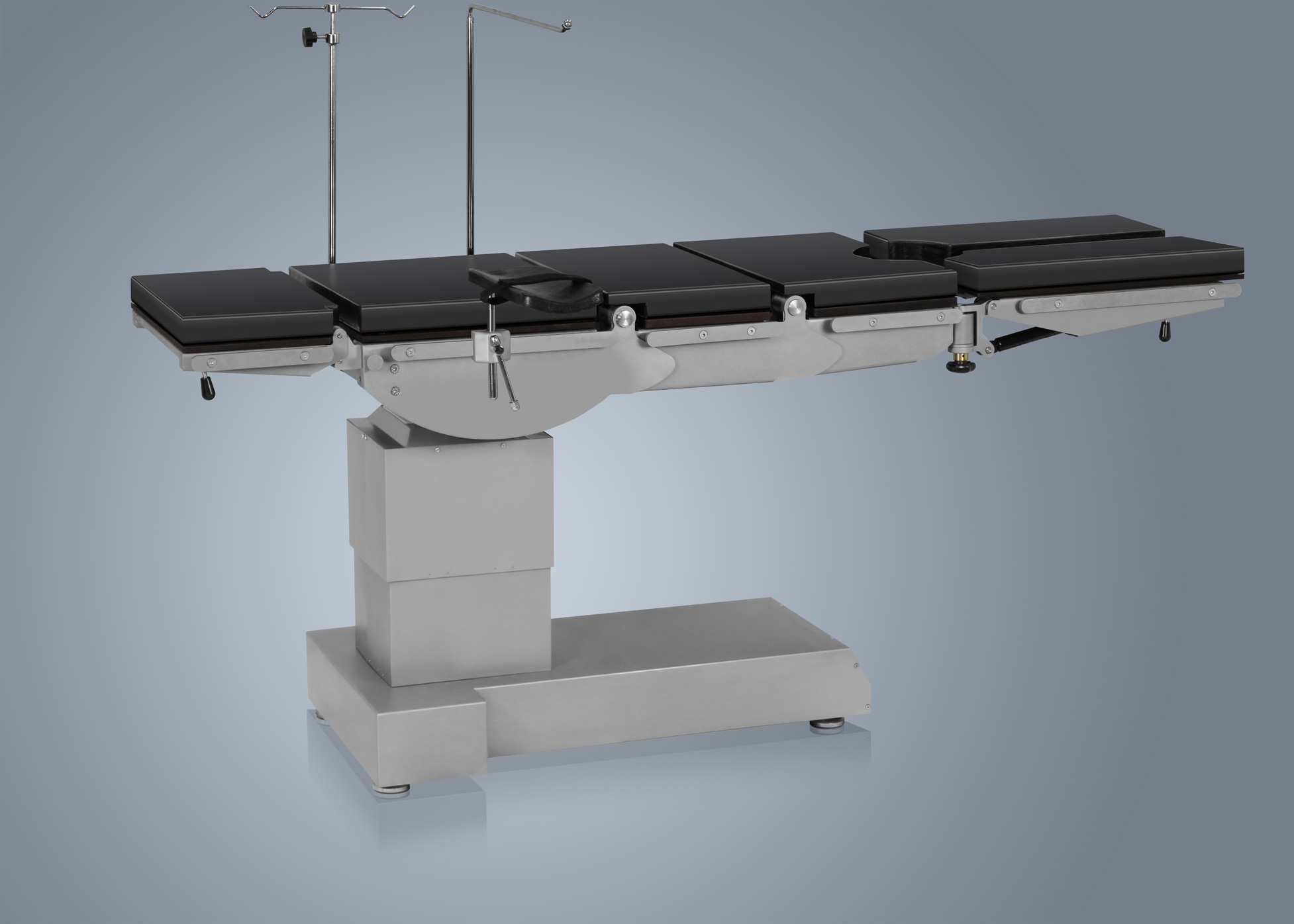

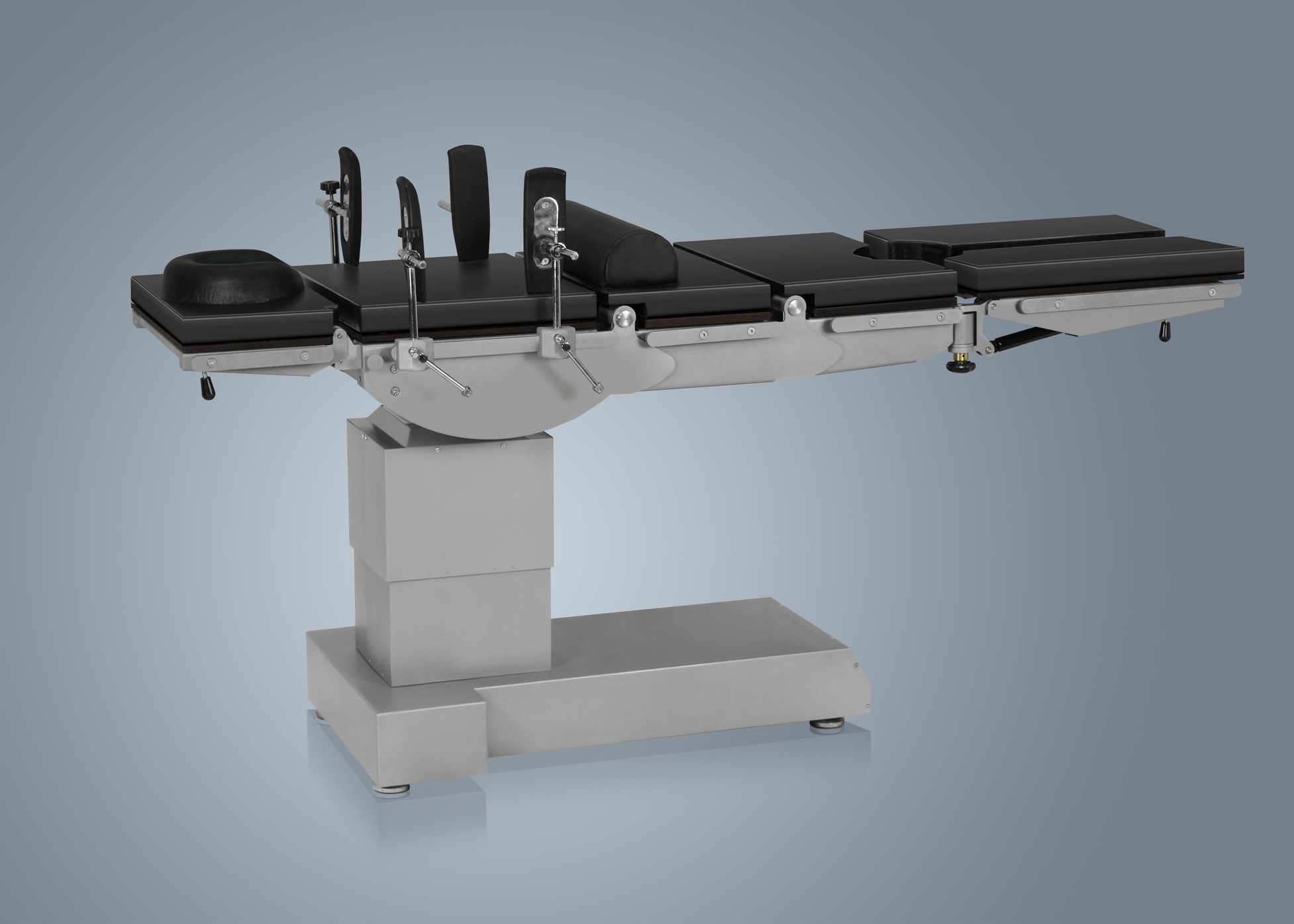

OT-90H

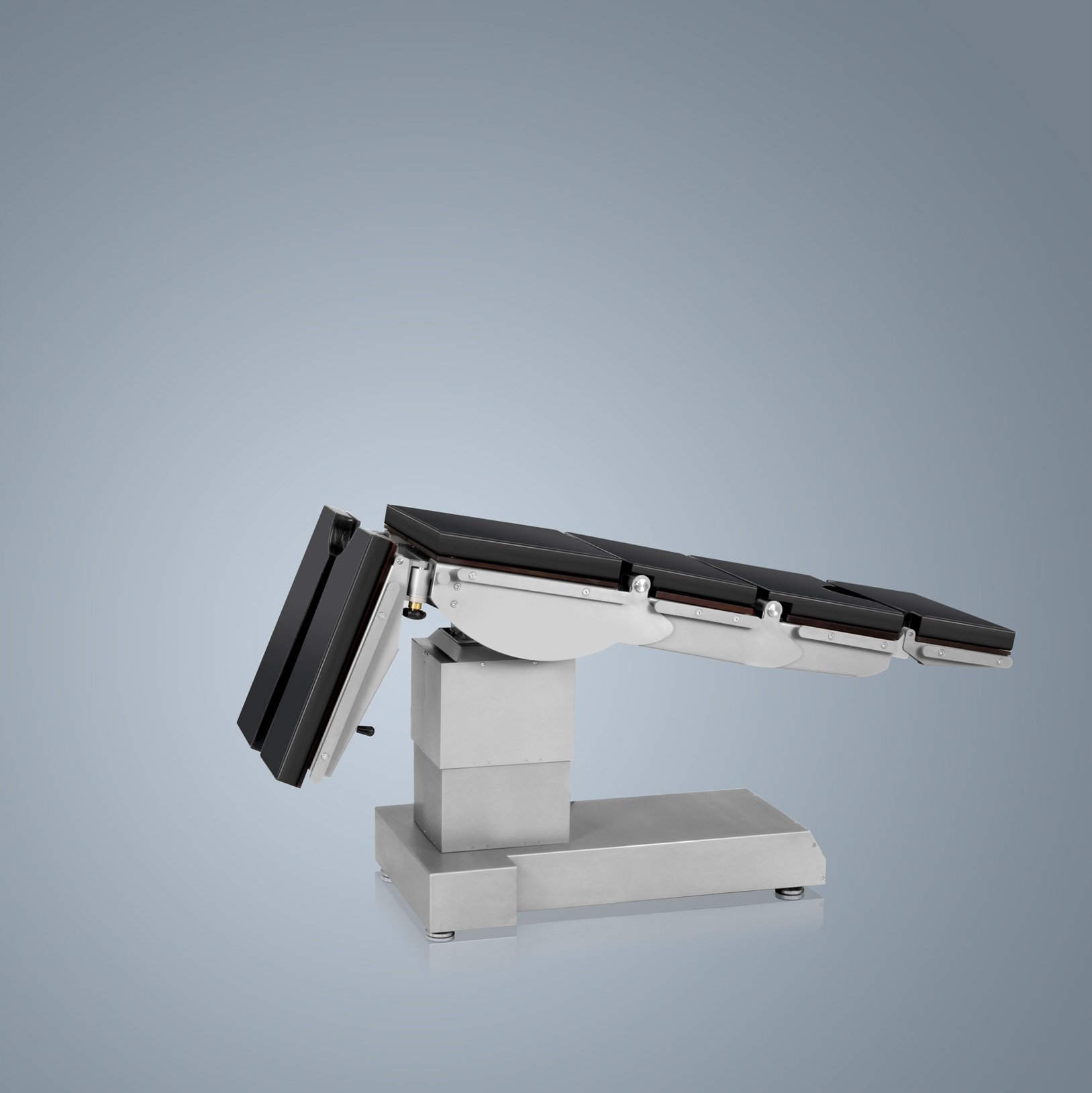

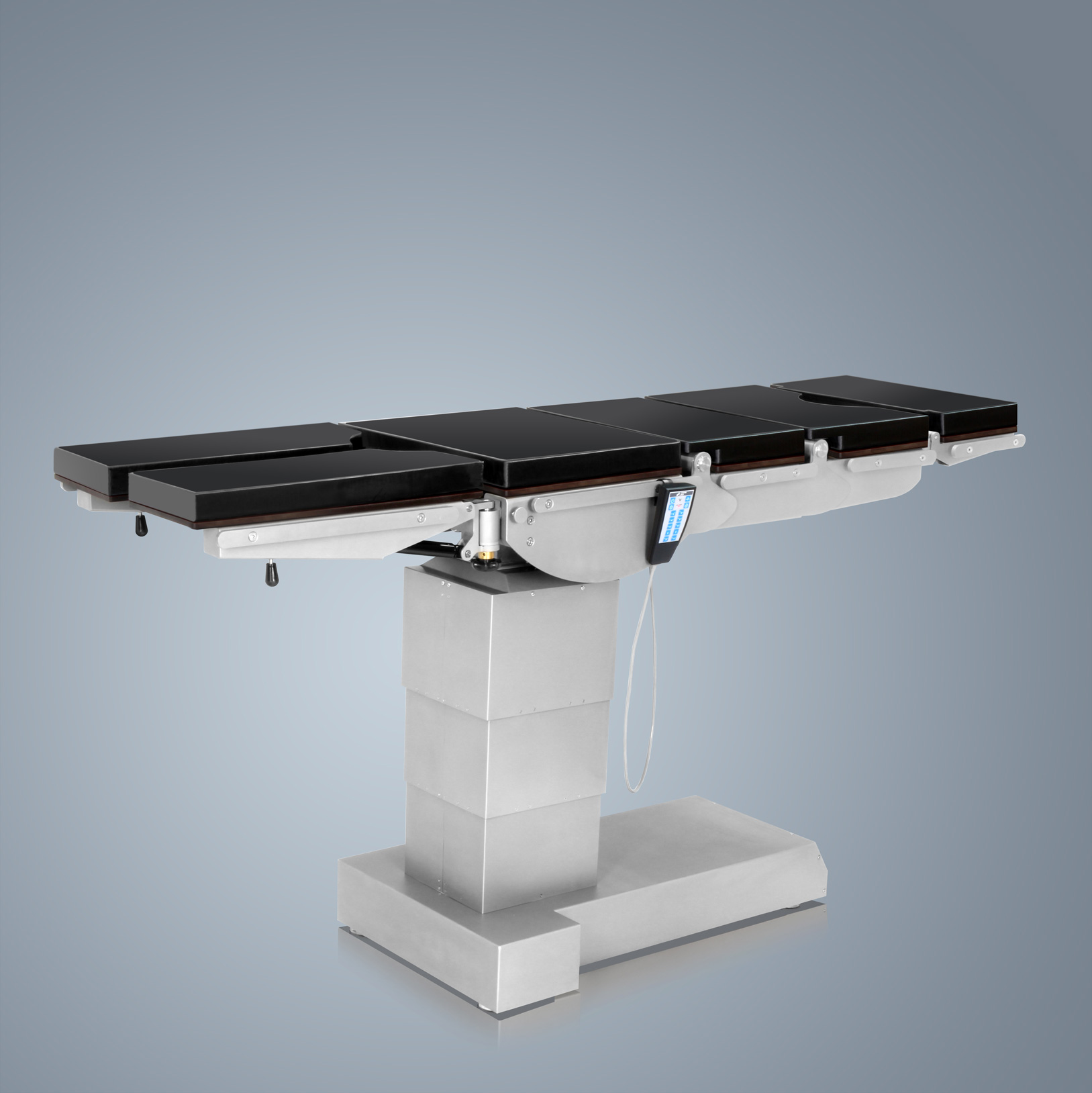

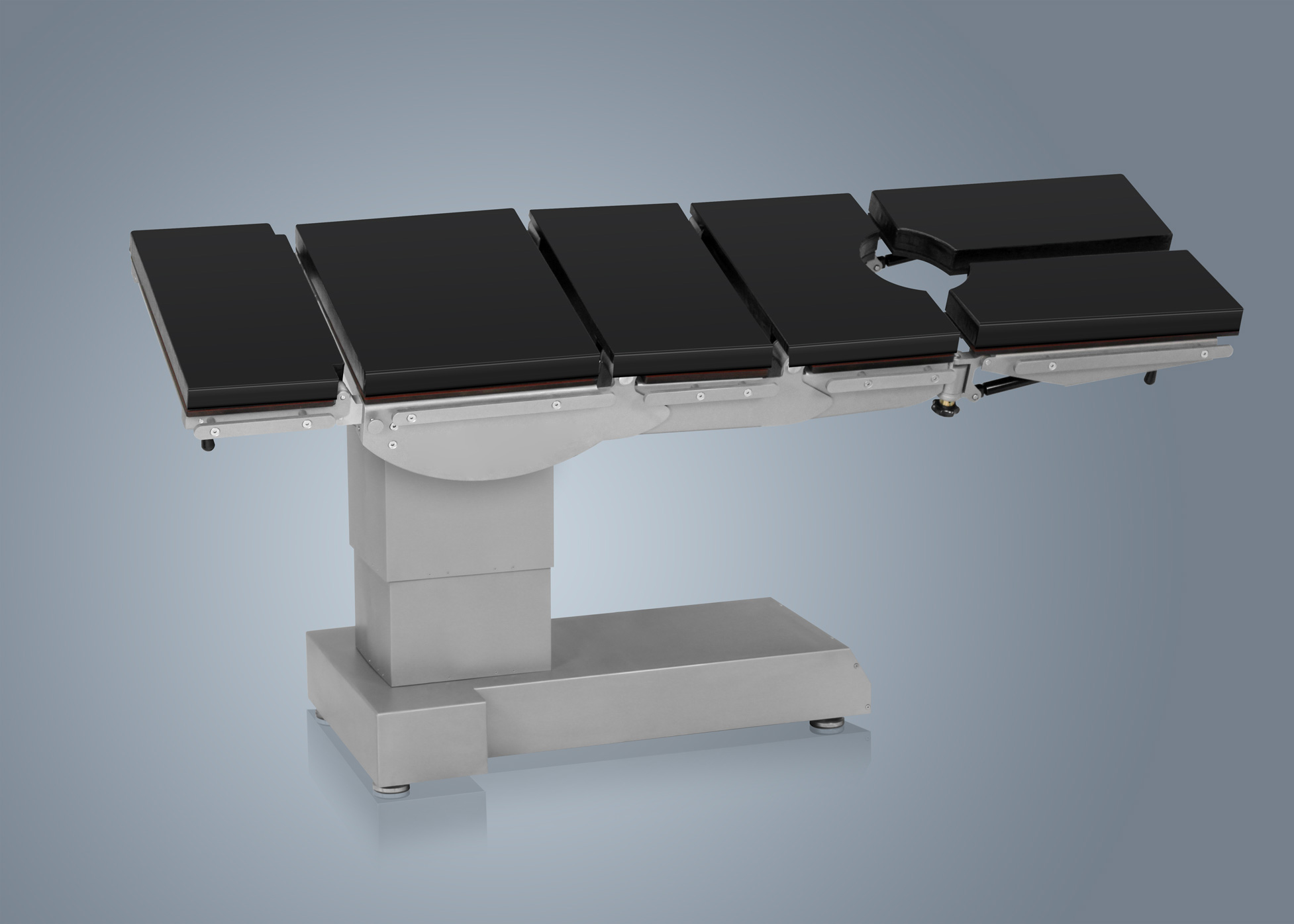

Electrohydraulic Operating Table

The OT-90H designed and manufactured by Farafan Engineering co. is a genuine universal table which is flexible, sturdy, mobile and extremely easy to adjust. The precise establishment of this system provides it with the highest efficiency of C-Arm.

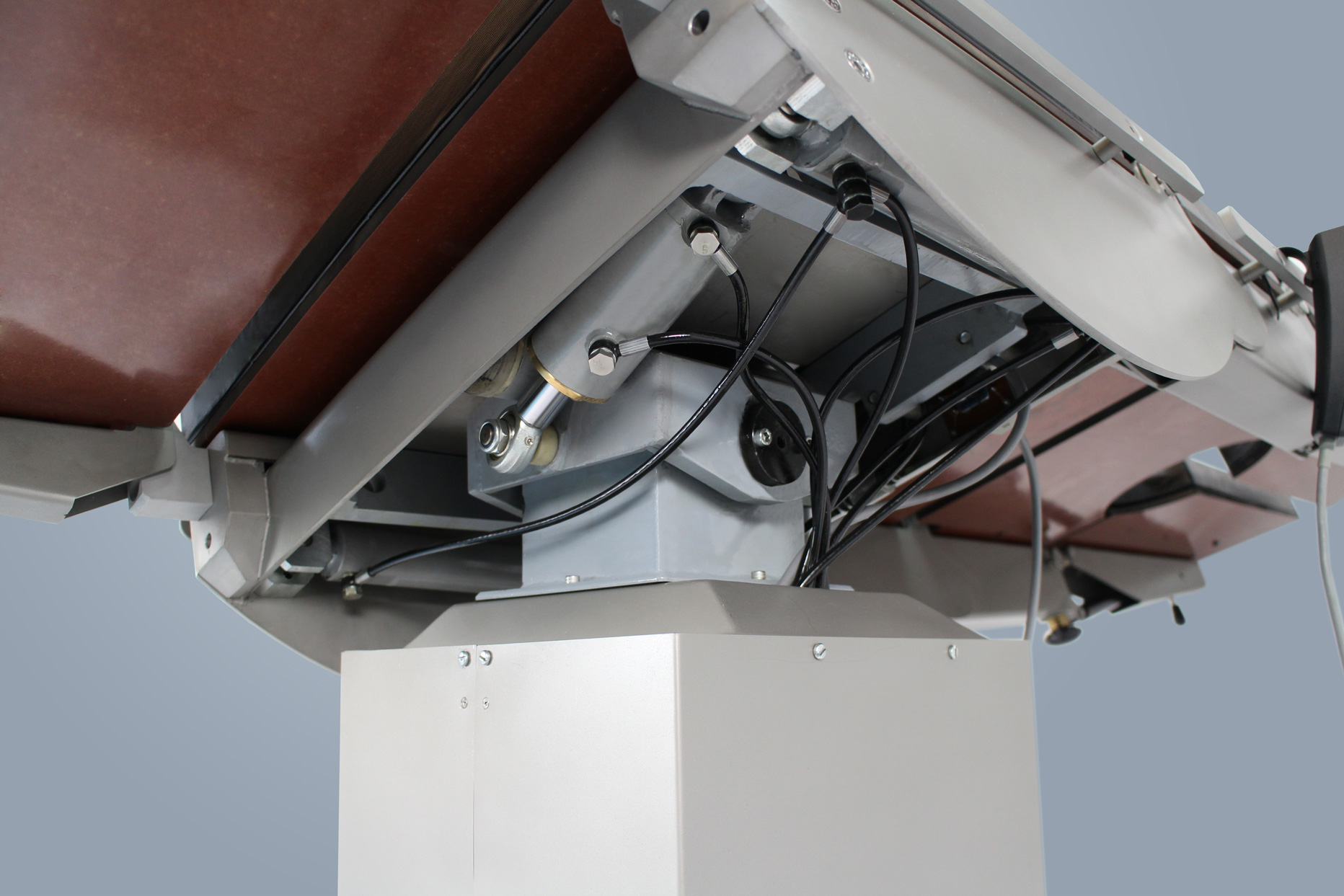

  • Electro hydraulic drives, this very smooth positioning.
  • Extremely low noise and high reliability.
  • Fully stainless steel construction including table top frames, accessories rail, base cover and column telescopic covers.

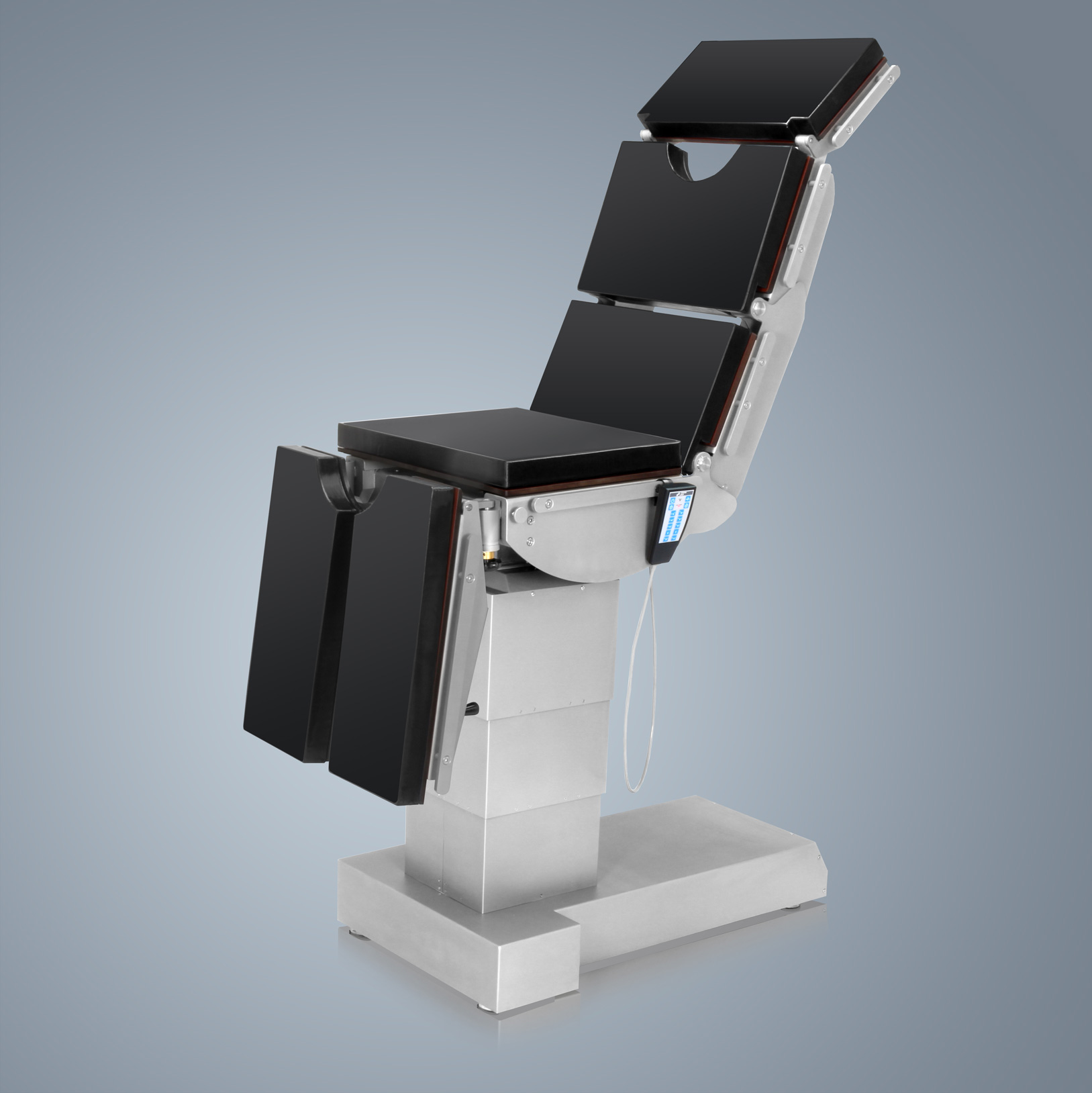

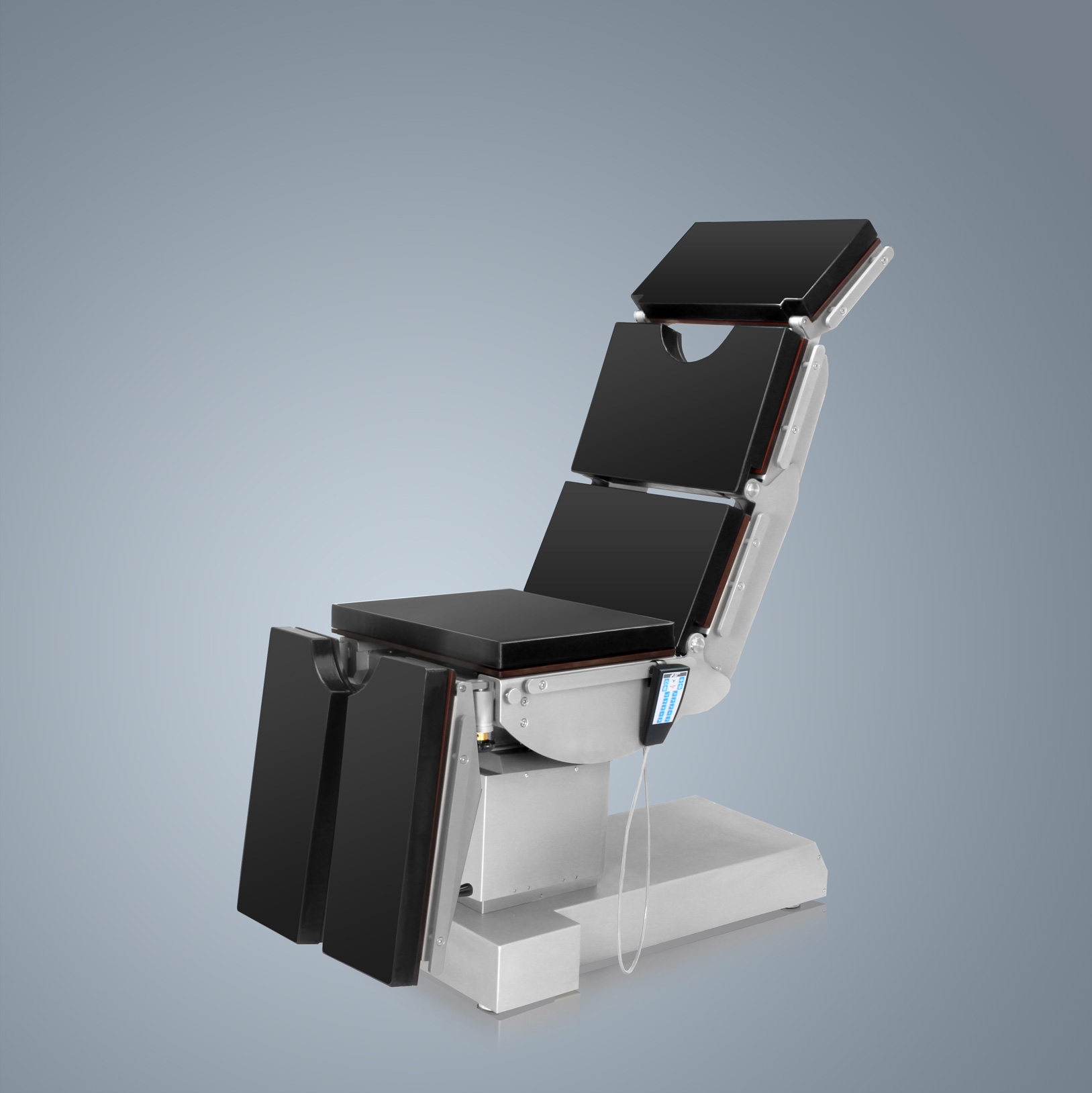

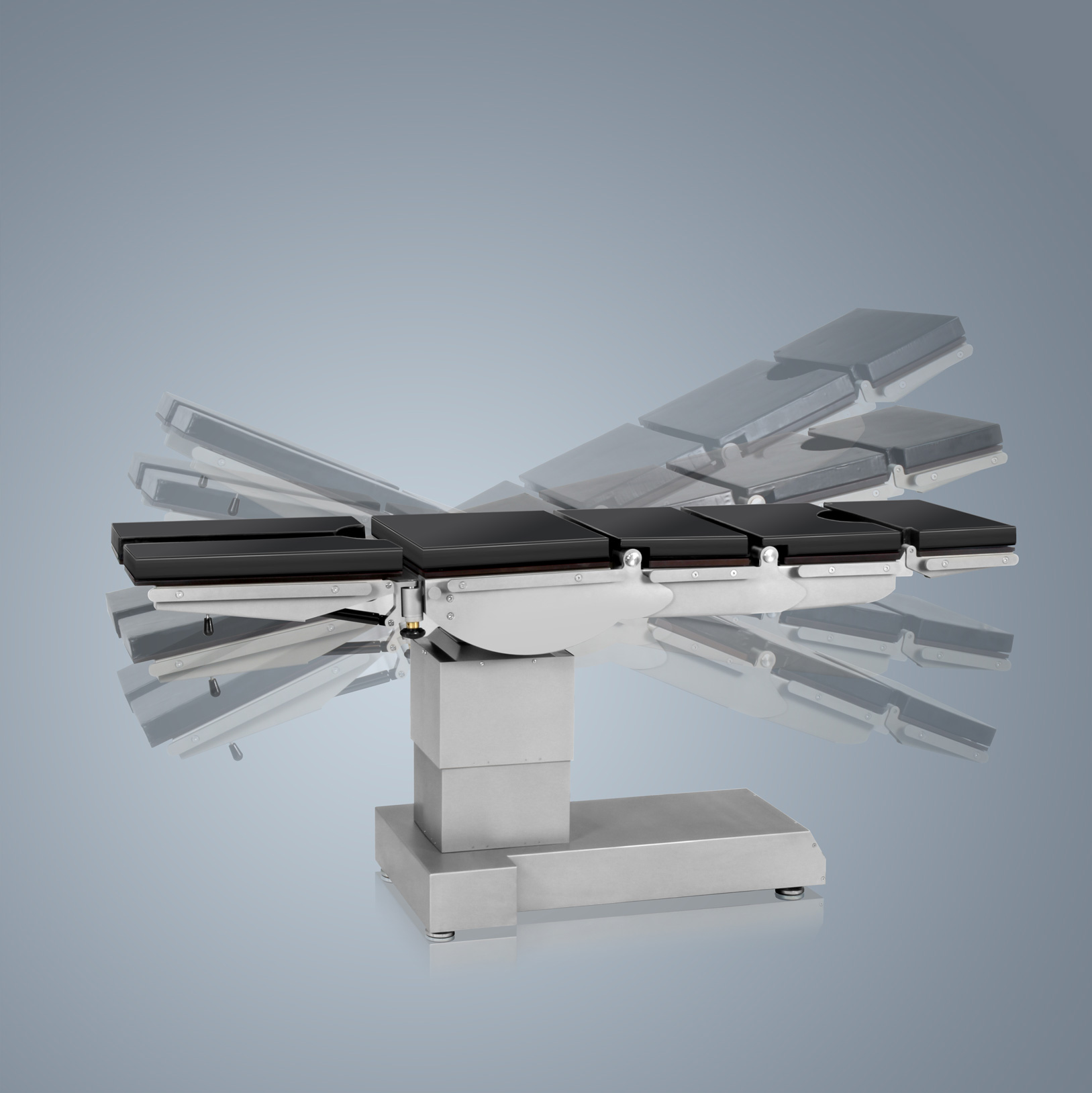

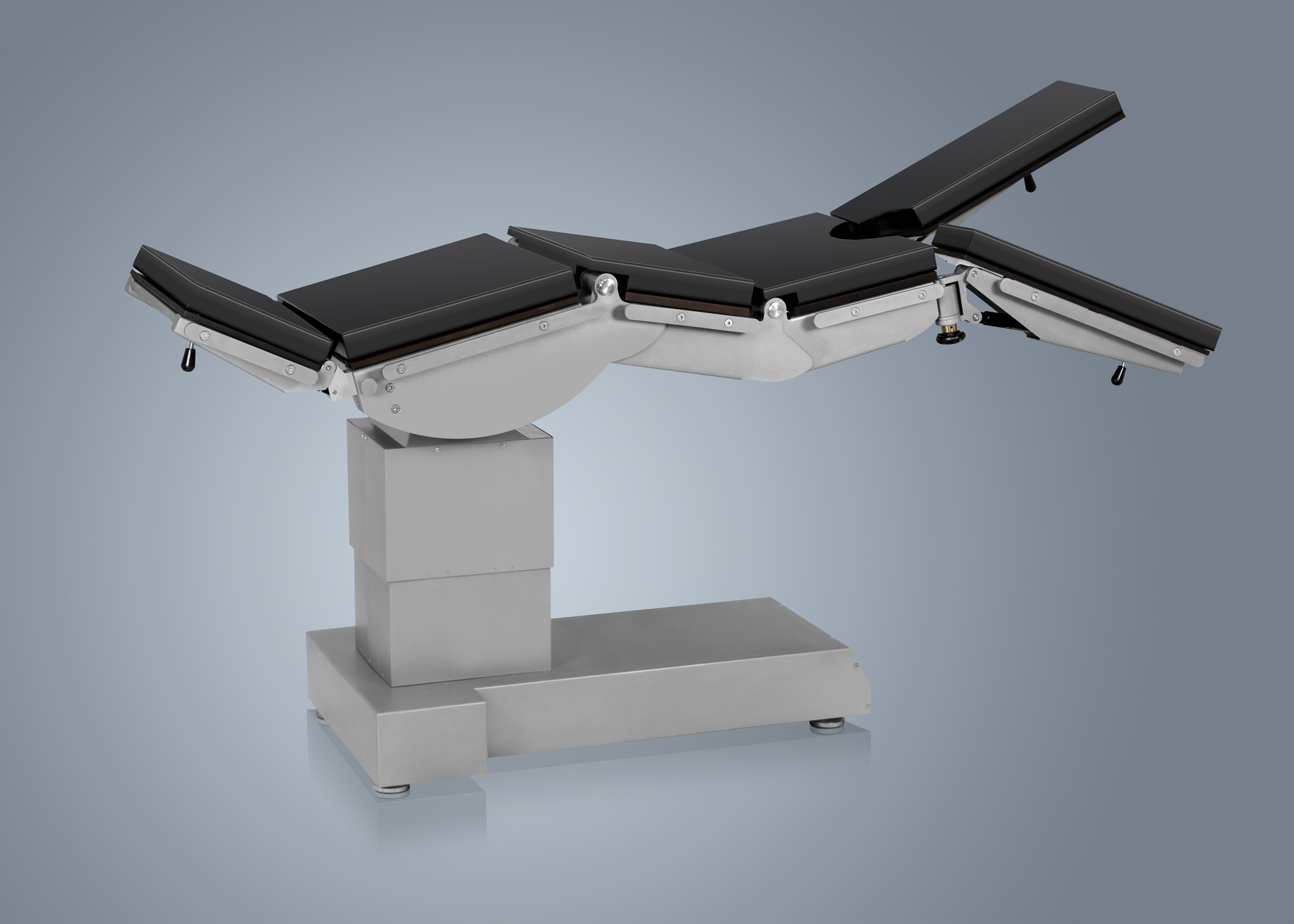

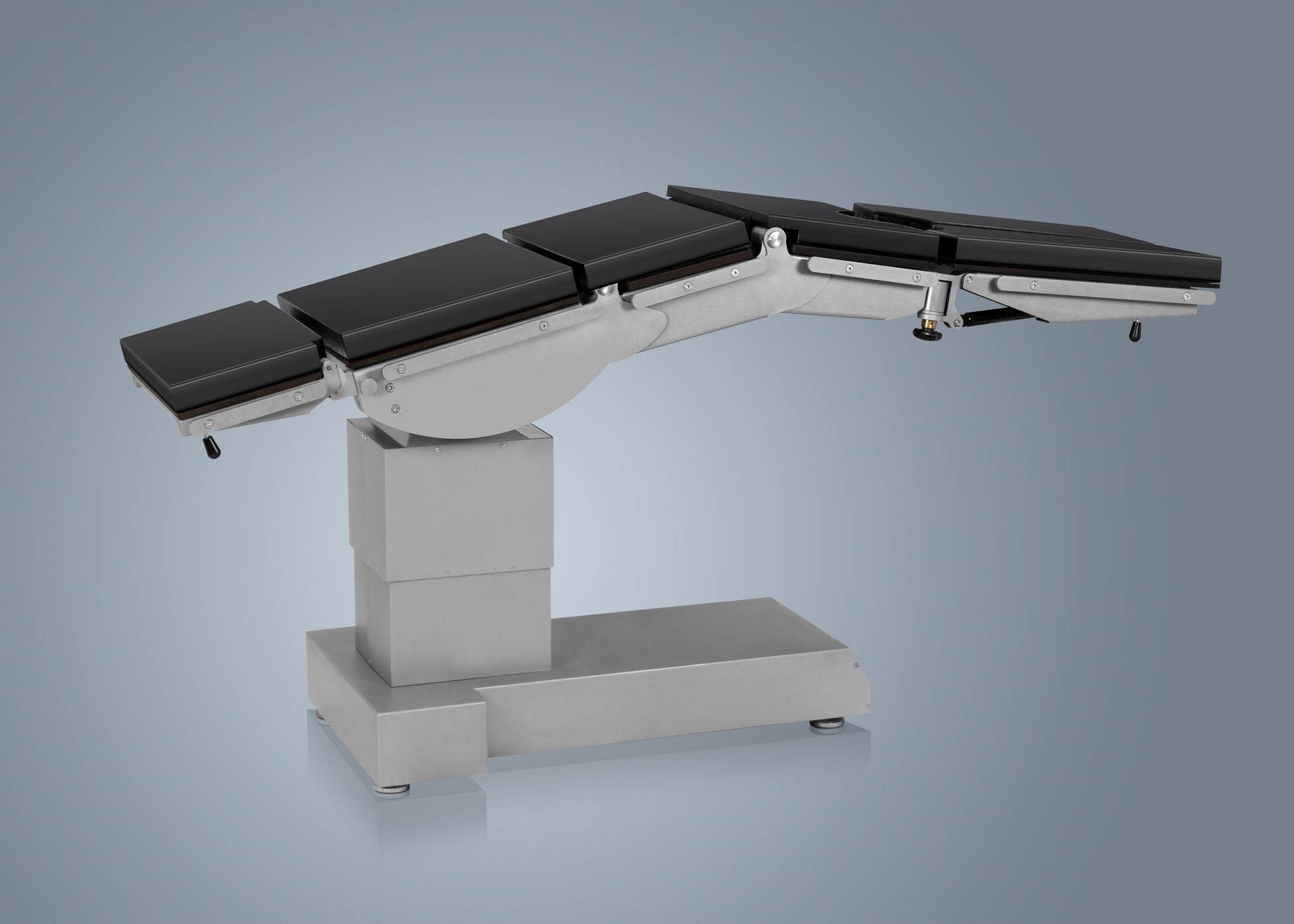

  • Tabletop is divided into 6 sections providing numerous articulation possibilities.
  • Table top is x-ray translucent with slots for x-ray film cassette insertion, making radiography possible over the entire length of the table.
  • Special antistatic and antibacterial material is used for pad cover
Electro hydraulic adjustment:
Height 675-1145 mm
Trend +30 / -25

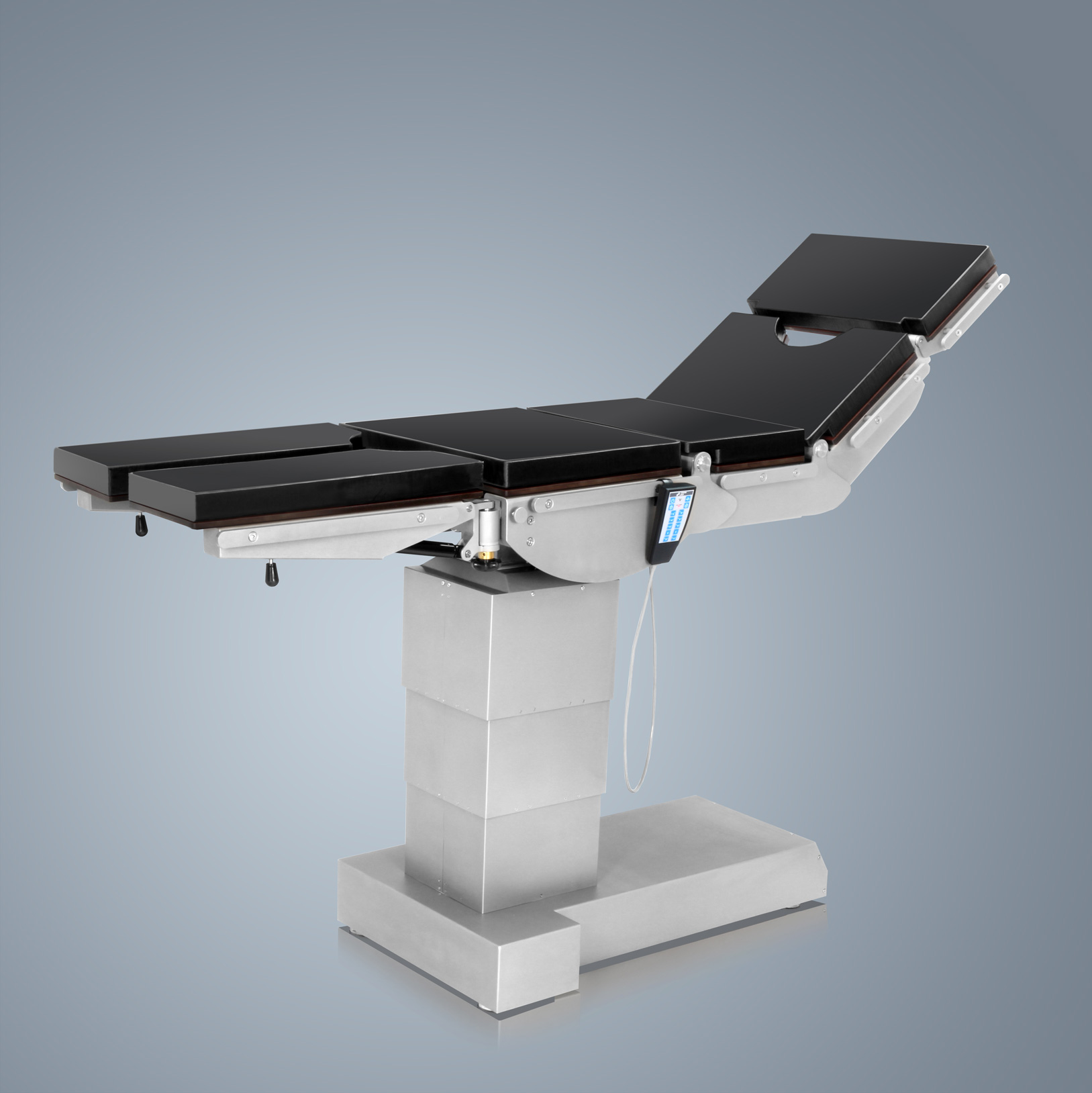

Lower Back +100 / -30
Upper Back +80 / -30

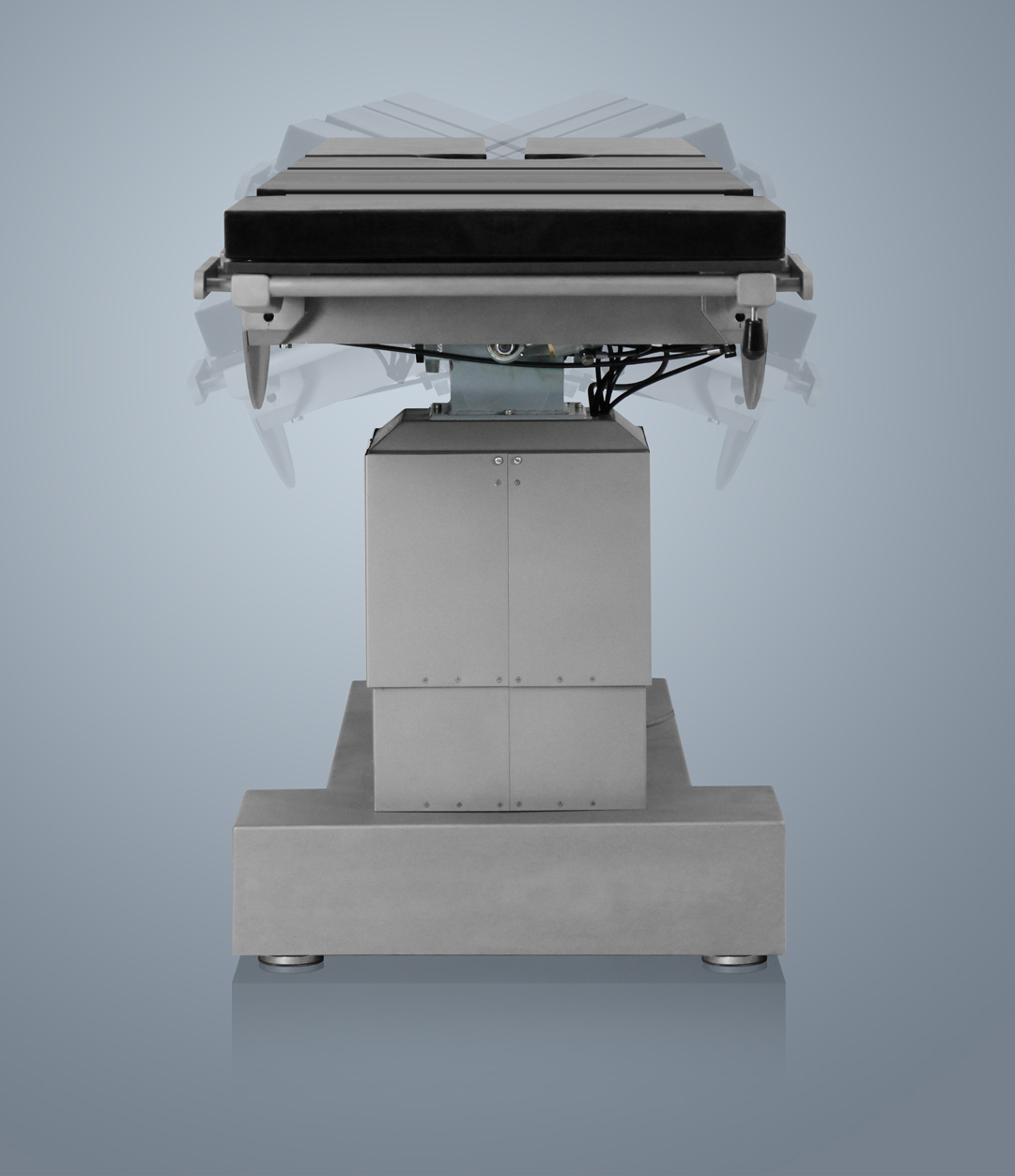

Tilt ±20
Manual adjustment:

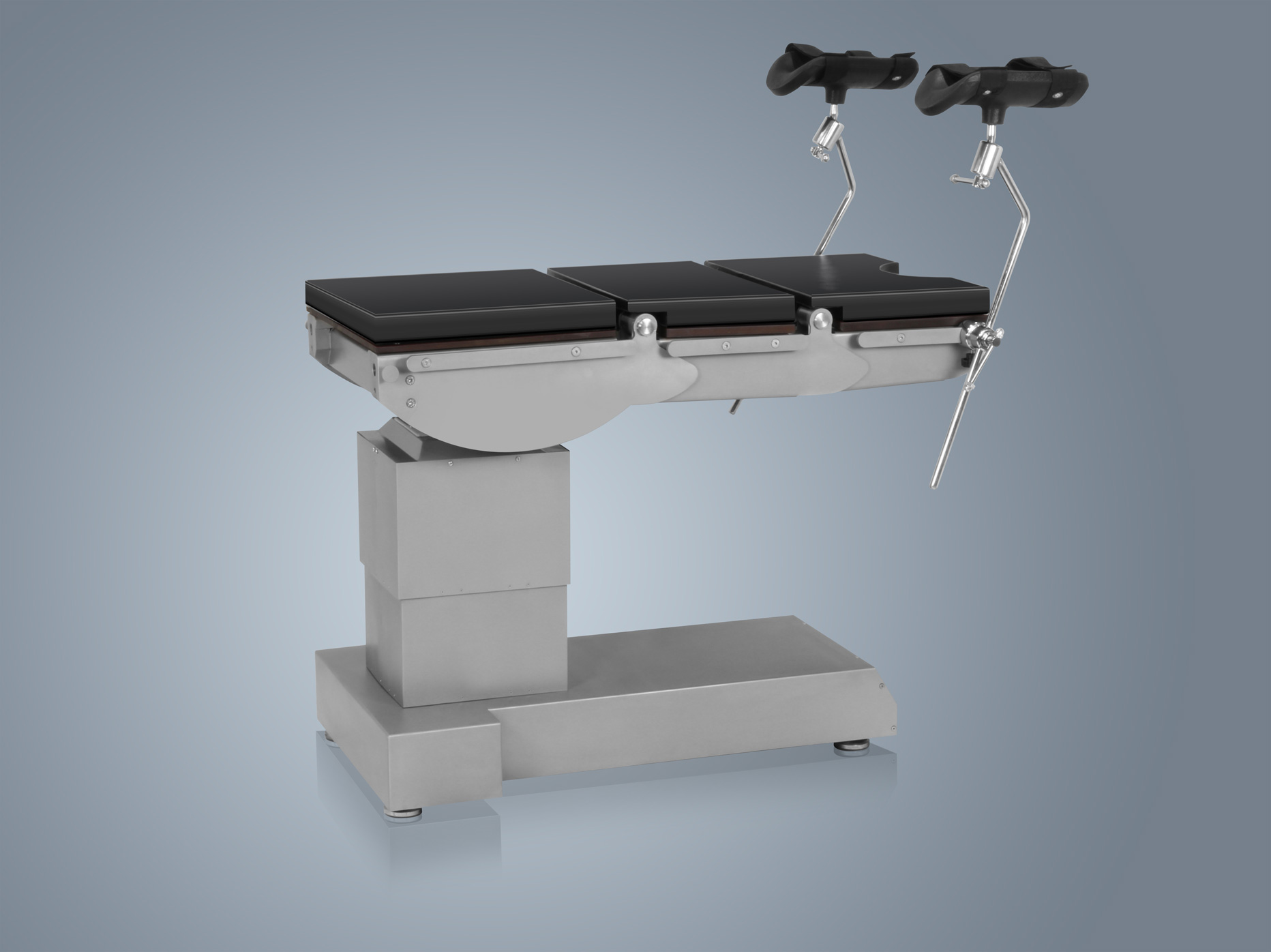

Leg Section (Up/Down) +25° / -75°
Leg Section (Lateral) 90°
Head Section (Up/Down) ±40° / -45°
Other Specifications:
Overal Length 2100 mm
Overal Width 600 mm
Weight 300 Kg
