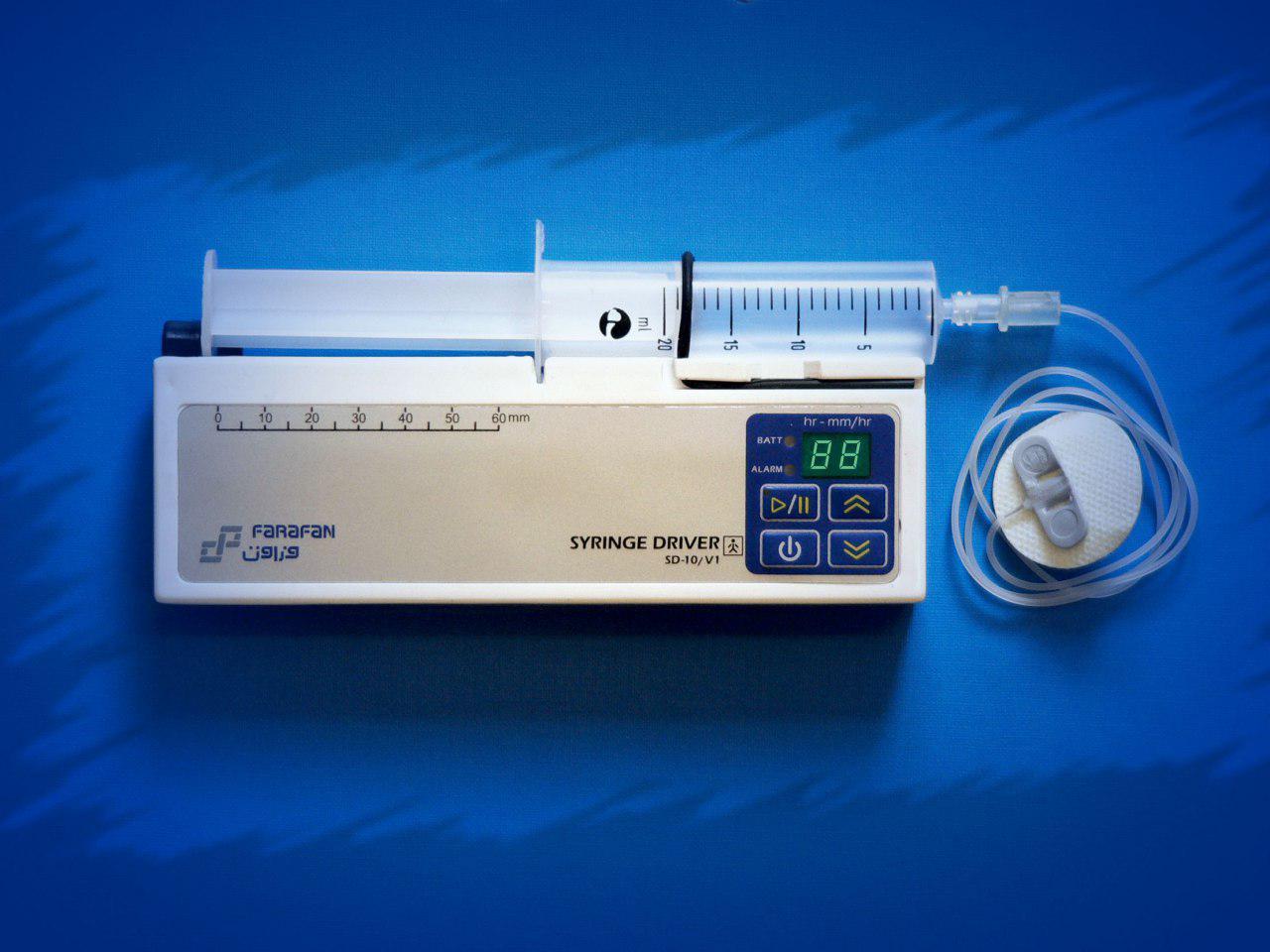

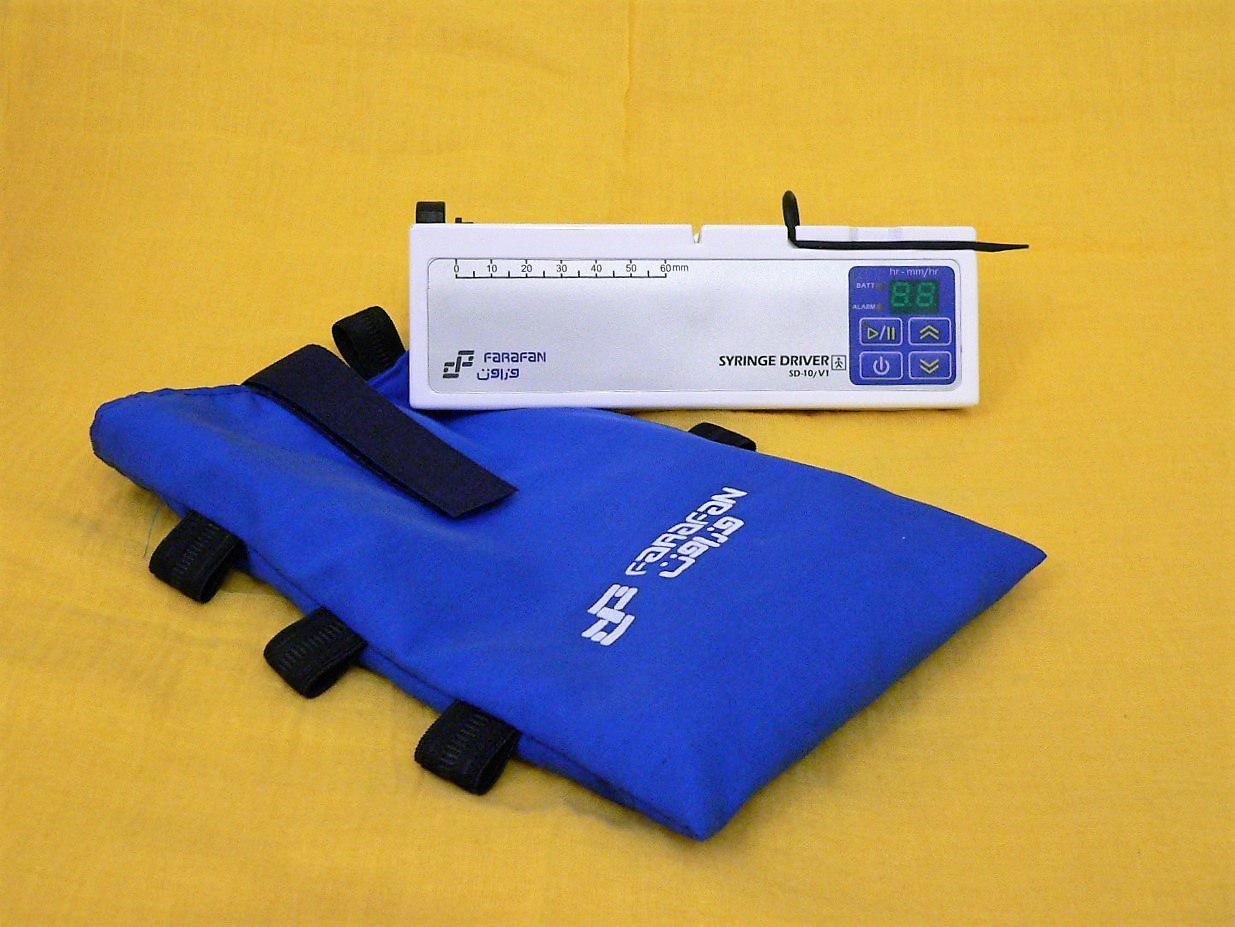

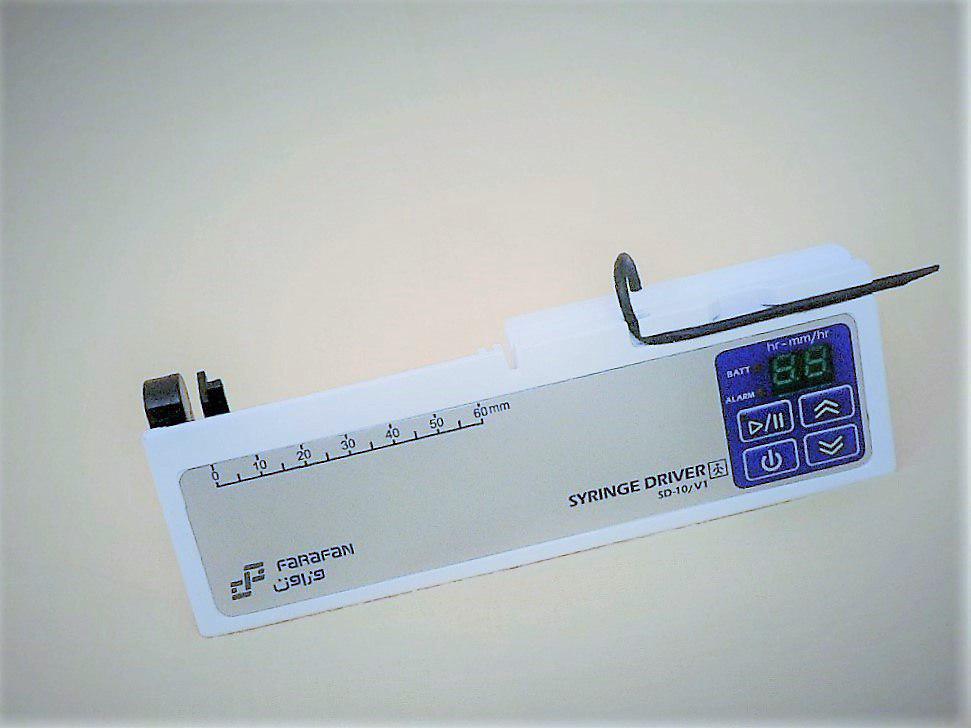

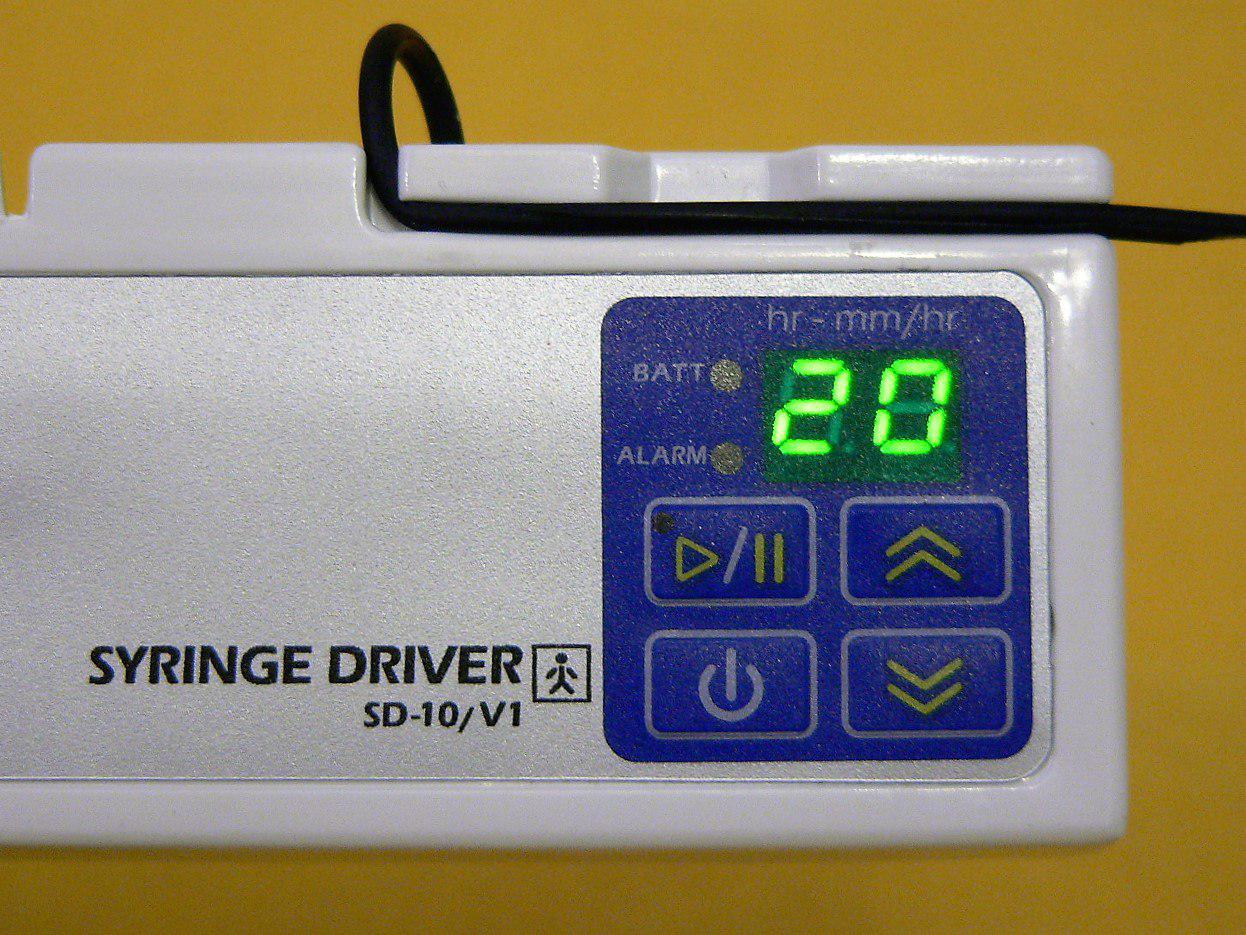

Syringe Driver (SD-10V1 & SD-99V1)
SD10V1, SD99V1
Syringe Driver

Ultra Low Power Consumption.

  • Selectable infusion mode:
    • Variable infusion speed: 1-10 or 1-99mm/hr
    • Syringe fully infused in 6, 8, 10 or 12hrs
  • Ultra low power consumption.
  • Charging battery from any USB ports.
  • User friendly keypad.
  • Bolus function.

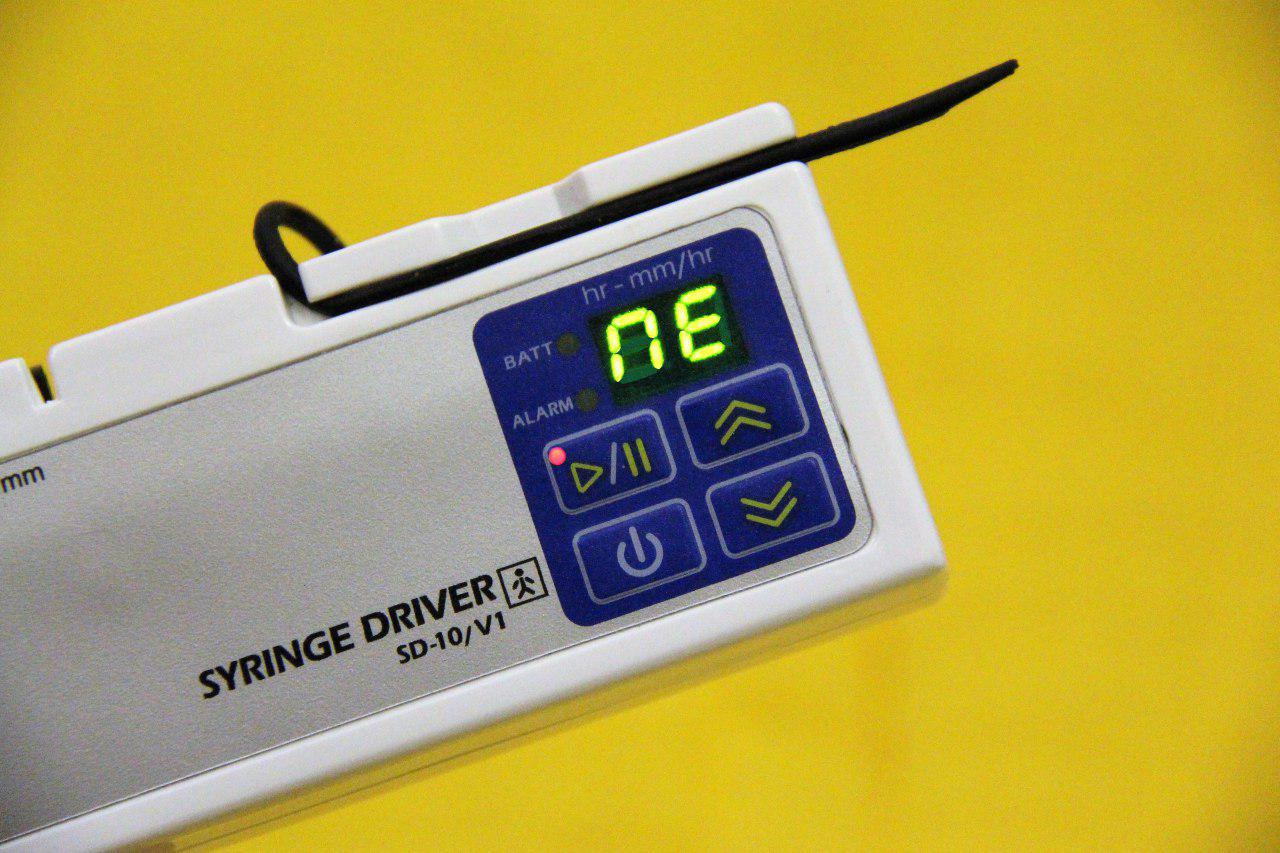

  • Audible and visual alarms.
Syringe Drivers:
Model / Parameter SD-10V1 SD-99V1
Infusion Mode: 1-10 mm/h2 1-99 mm/h2
Syringe fully infused in 6, 8, 10 or 12 hrs in 6, 8, 10 or 12 hrs
Syringe 2, 5, 10, 20, 30cc 2, 5, 10, 20, 30cc
Alarms Start, Occlusion, Near Empty, End of Infusion & Low Battery. Start, Occlusion, Near Empty, End of Infusion & Low Battery.

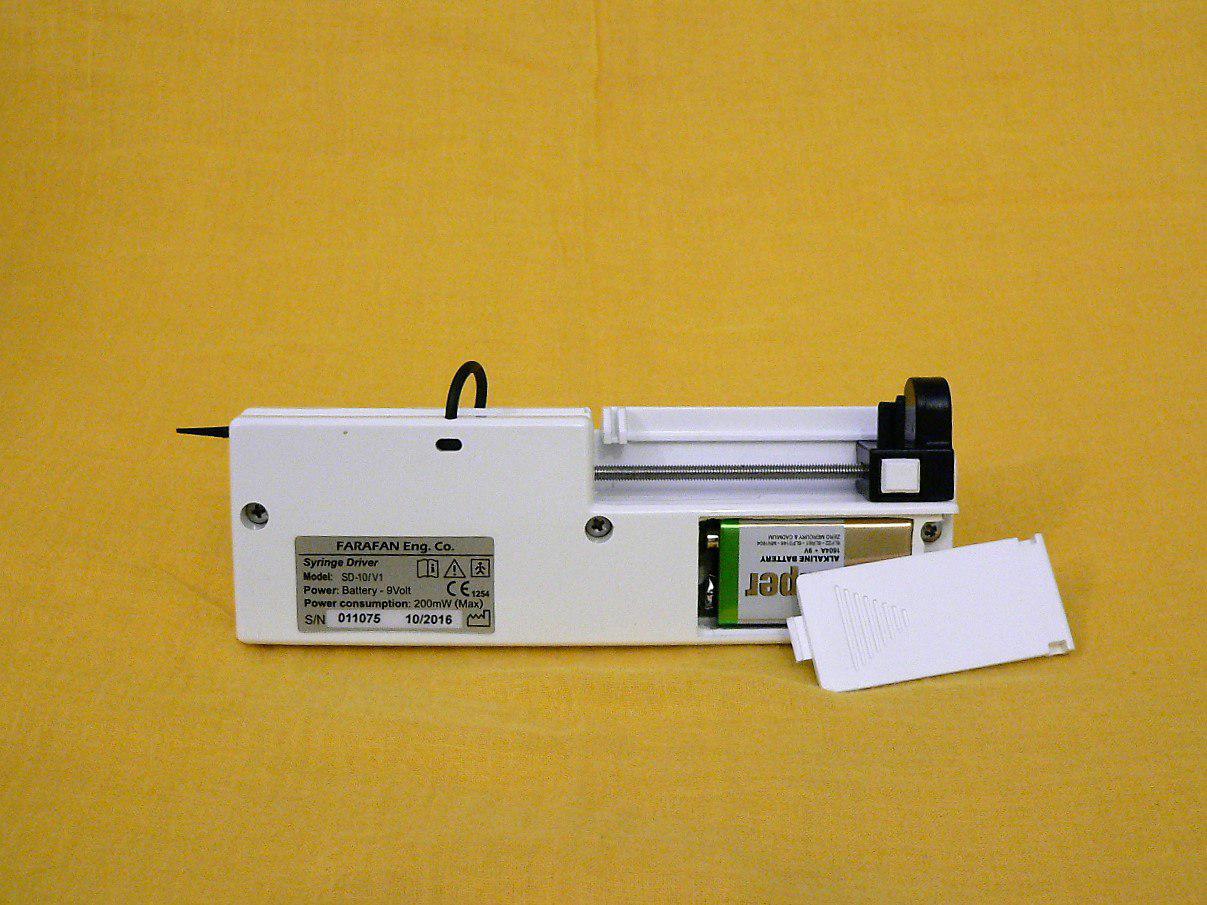

Power Supply 9volt rechargeable battery with USB charger. 9volt rechargeable battery with USB charger.
Weight 175 gr 175 gr
Dimension 166x53x23mm 166x53x23mm
Syringe Driver (SD-10V1 & SD-99V1)
Syringe Driver (SD-10V1 & SD-99V1)
Syringe Driver (SD-10V1 & SD-99V1)
Syringe Driver (SD-10V1 & SD-99V1)
Document File Type Download Size Download Link
Catalog PDF 806 KB
