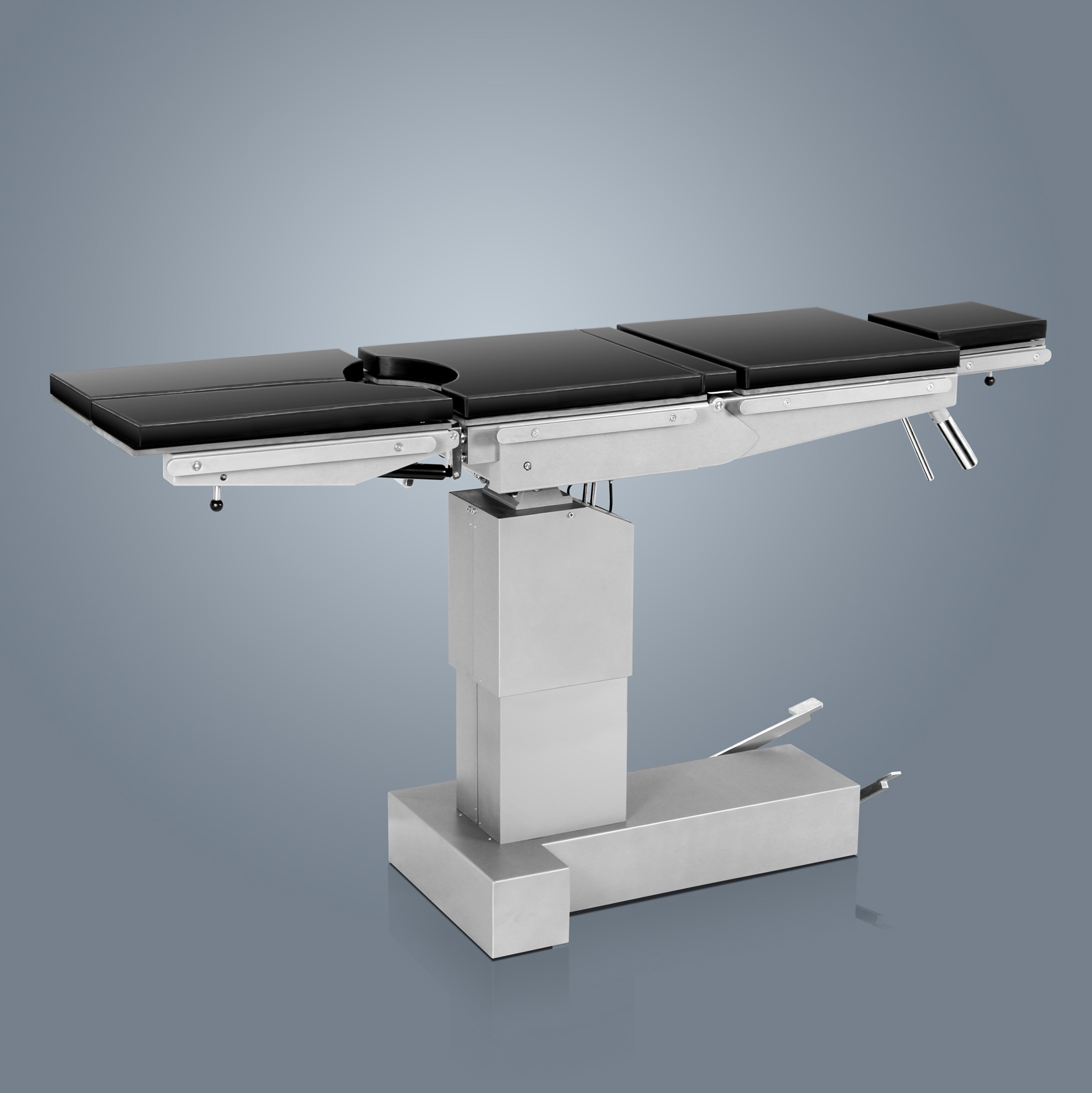

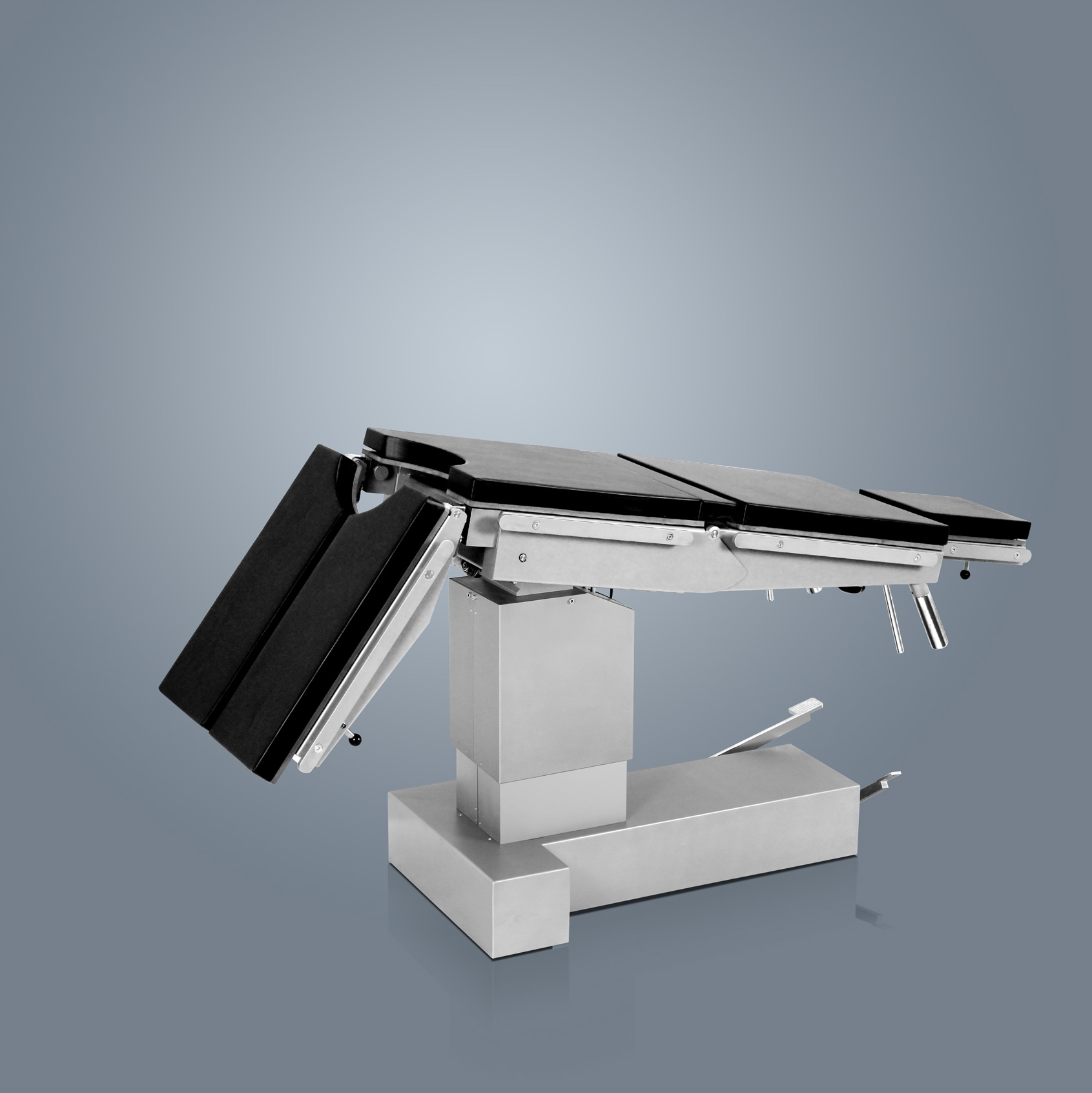

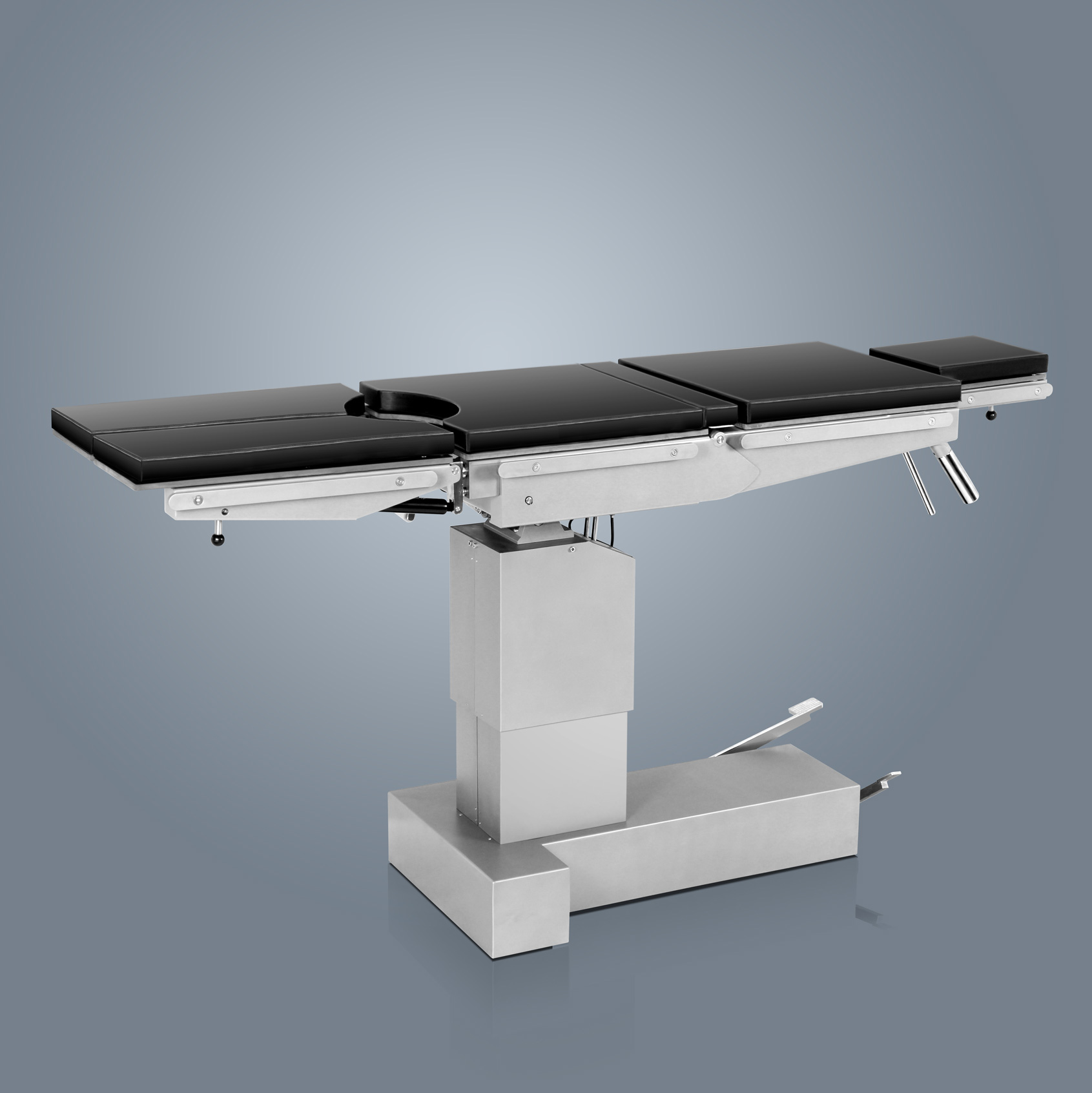

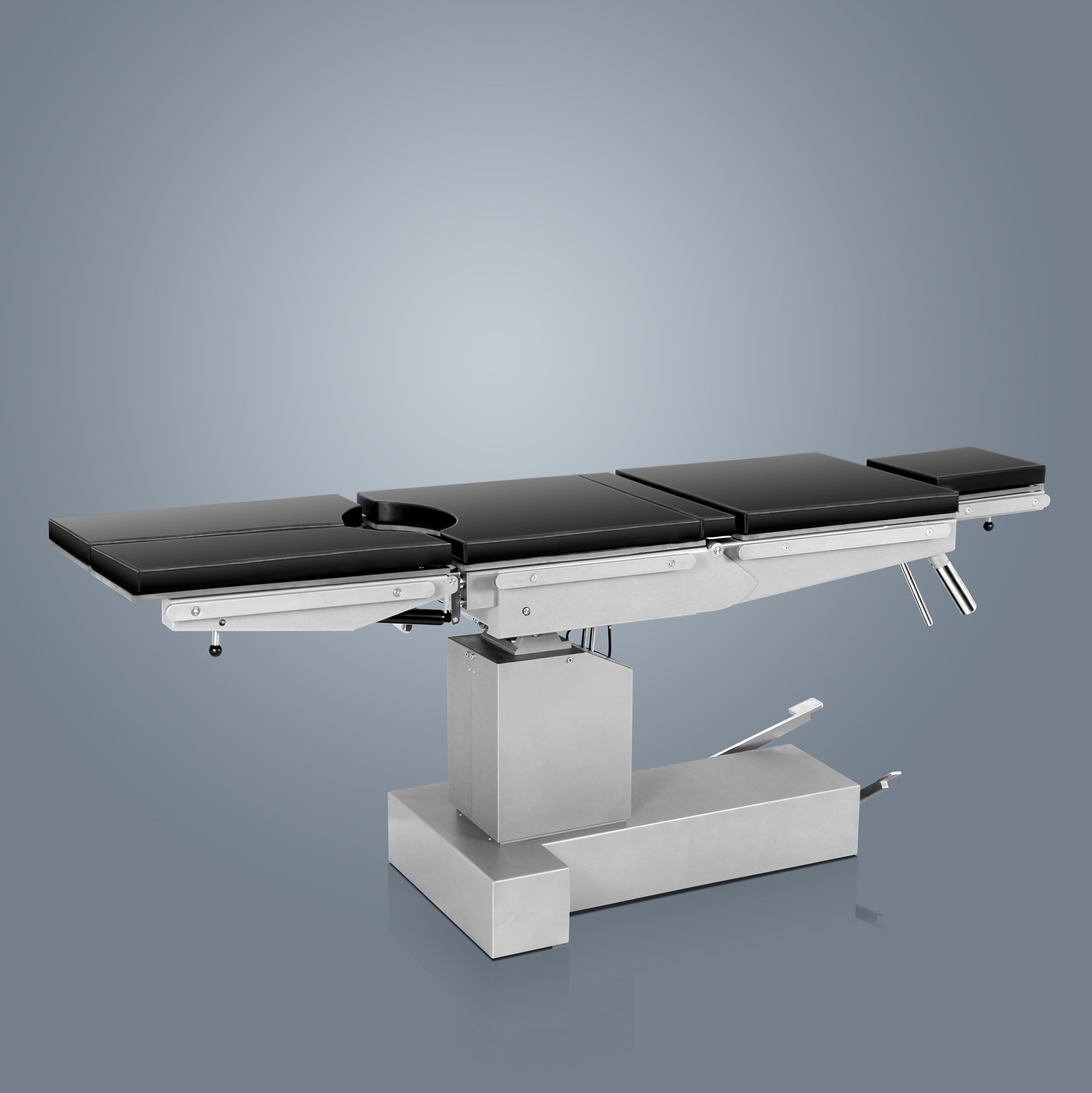

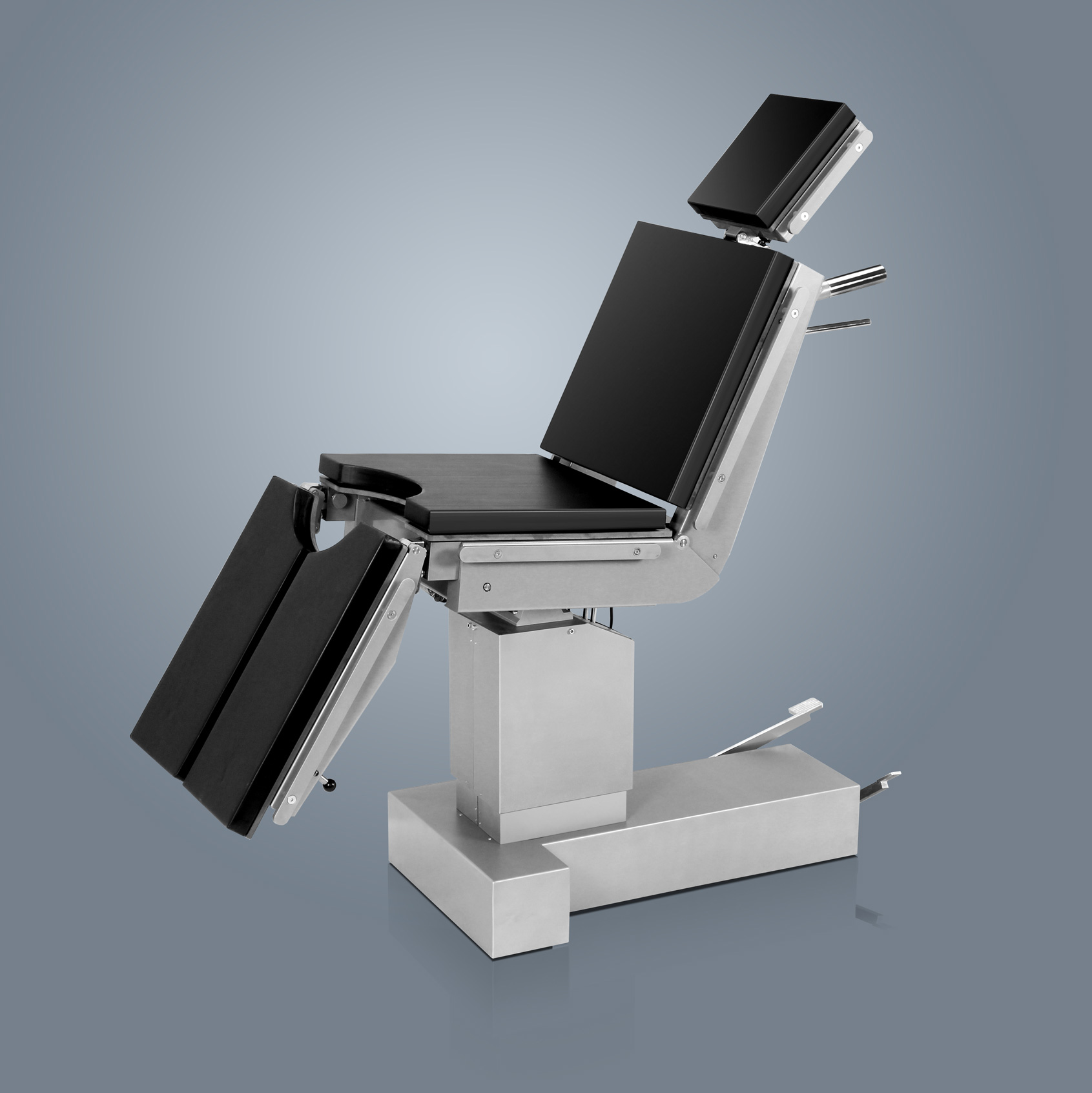

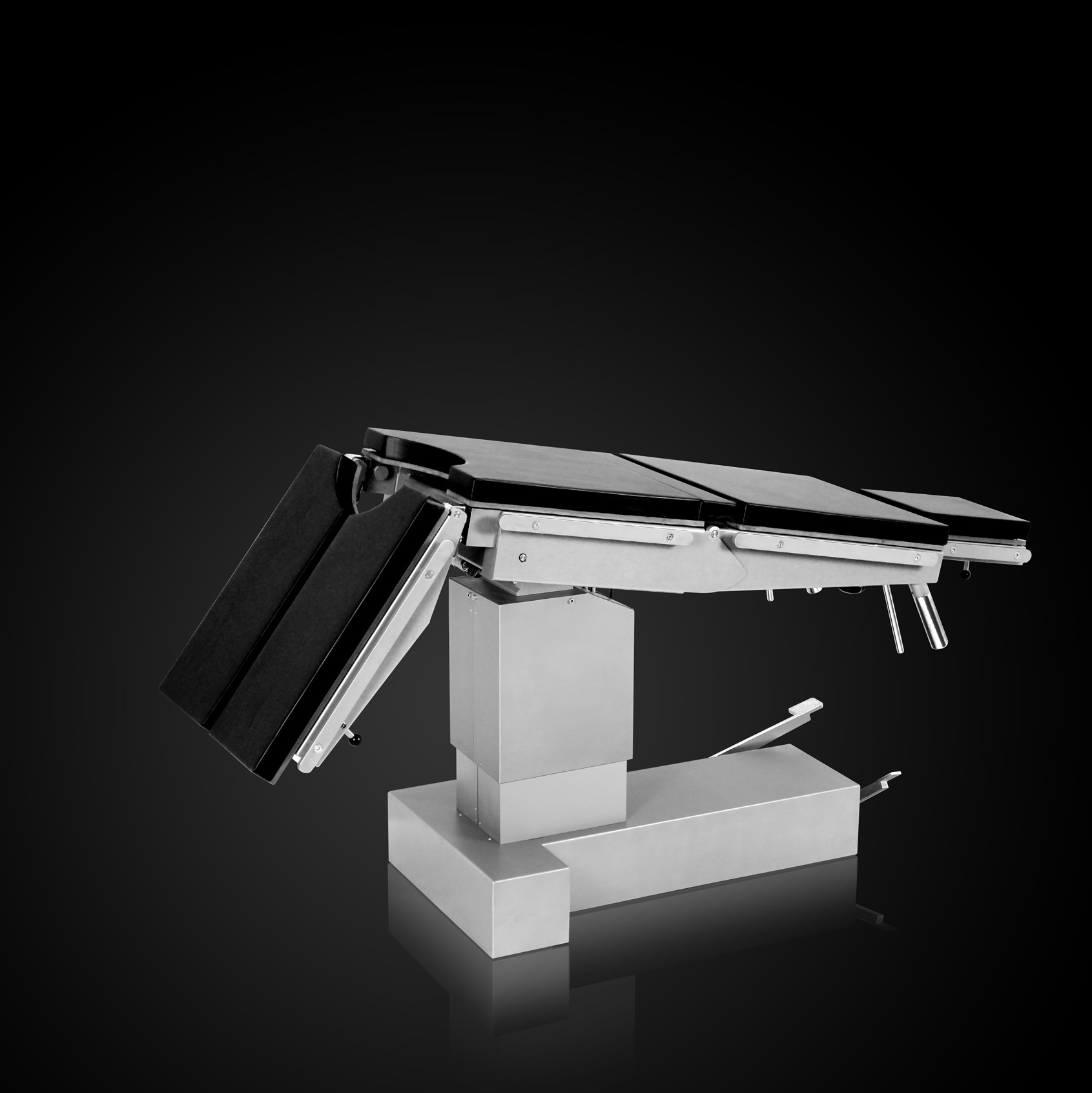

Manual operating table OT82M
Manual operating table OT82M Manual operating table OT82M Manual operating table OT82M Manual operating table OT82M Manual operating table OT82M Manual operating table OT82M
OT-82M
Mechanical Operating Table

OT-82M is a genuine universal table which is flexible, sturdy, mobile and extremely easy to adjust.

  • Hydraulic and gas spring drives, this very smooth positioning.
  • Extremely low noise and high reliability.
  • Table top frame is made of durable epoxy coated steel; base cover and column telescopic covers and accessories rails are made of Stainless steel
  • Table top is divided into 5 sections providing numerous articulation possibilities.
  • Detachable head and detachable split leg sections provide further versatility.
  • Up & Down positions is activated by foot pedal operated hydraulic pump.
  • Integrated weight compensation by gas springs facilitates manual adjustment of the head and leg sections, trendelenburg and back section.
  • Lateral tilt positions are obtained by crank situated on side of the frame
  • Table top is x-ray translucent with slots for x-ray film cassette insertion,
    making radiography possible over the entire length of the table.
  • Special antistatic and antibacterial material is used for pad cover.
  • Pads are easily removable and totally sealed to facilitate cleaning.
  • Optimally designed base provides ample toe space for the user, along with extreme stability.
  • Four easy glide, antistatic castors, two of which are swiveling, ensure mobility.
  • Pedal operated central braking system secures the table in its place while in use.
  • Designed, manufactured, and tested according to international standards, yet offered at a very attractive price.
Technical specification:
Height 780-1075 mm
Trendelenburg 25°
Reverse Trendelenburg 28°
Lateral Tilt ±23°
Back Section (Up) +80°
Back Section (Down) -35°
Leg Section (Up/Down) +35° / -65°
Head Section (Up/Down) +30° / -35°
Other Specifications:
Overal Length 1967 mm
Overal Width 564 mm
Weight 150 Kg
Manual operating table OT82M
Manual operating table OT82M
Manual operating table OT82M
Manual operating table OT82M
Manual operating table OT82M
Document File Type Download Size Download Link
Catalog PDF 546 KB
